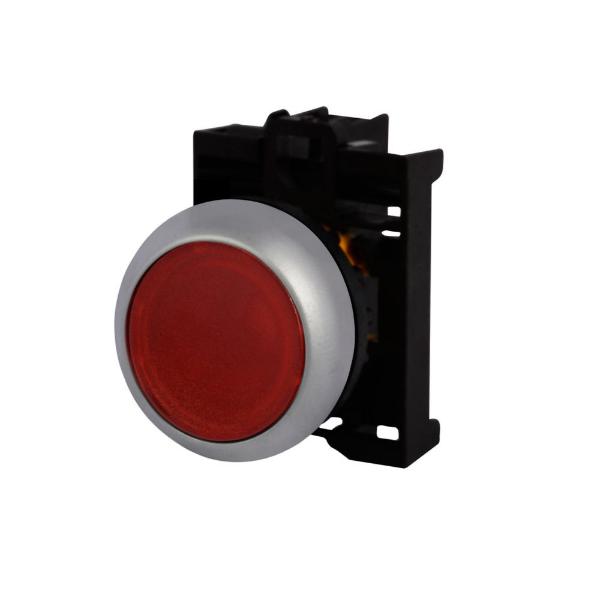

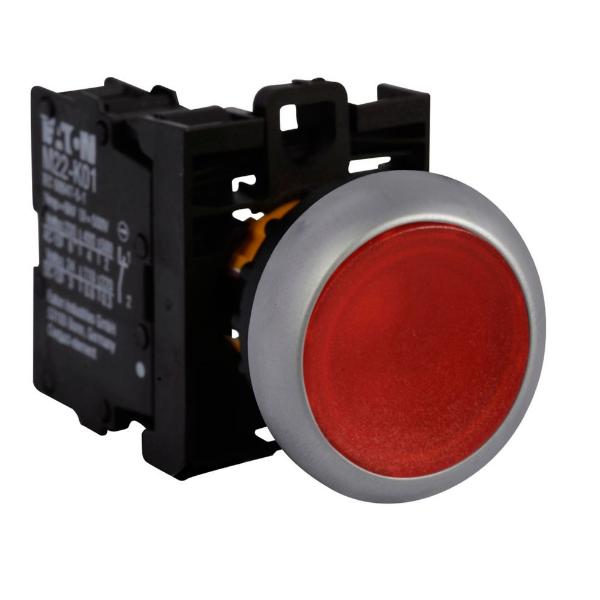

EATON M22-DL-R-K02-R Push Button, Push Button, Momentary, Red, 2NC, Flush Button

Item: BH4RKB
Model: M22-DL-R-K02-R
11 In Stock

Ships within 2 days via

£141.52
5.00% off
£134.44/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ac Contact Rating 6A @ 240V
Action Momentary
Actuator Function Momentary
Actuator Type Button, Flush
Application Push Button
Bezel Silver
Bezel Material Nylon
Button Color Red
Contact Configuration 2 NC
Contact Form 2NC
Dc Contact Rating 3A @ 24V
Display Qty 1
Features Field Conversion From Momentary To Maintained Can Be Done, Includes Contact Block Mounting Adapter
Head Material Plastic
Head/lens Color Red
Height 2 4/25"
Illumination Illuminated
Ip Rating IP67, IP69K
Lamp Bulb Type LED
Lamp Module Type Full Voltage
Lamp Voltage - Maximum 30V AC/DC
Length 1.46"
Manufacturer Warranty Length 1 yr.
Mechanical Operating Durability 5 x 10^6
Nema Enclosure Rating NEMA 13, NEMA 4X
Notes Positively Driven Contact Blocks.
Number Of Indicator Lights 0
Number Of Operators 1
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -13°F
Operator Illumination Illuminated
Operator Material Plastic
Operator Voltage Rating - Maximum 30V AC/DC
Overall Depth 2.26"
Overall Height 1"
Overall Width 1"
Panel Mounting Hole Diameter 22 mm
Product Type Push Button Operators
Push Button Style Flush
Resistance Properties Corrosion Resistant
Series M22 Series
Terminal Connection Screw Clamp
Type 22.5 mm Modular
Voltage Rating 12-30V AC/DC
Warranty Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.
Width 1.18"
standard BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED

Product Details

Shipping Information

Height 5.49
Length 3.71
Width 3
Country Of Origin US
Weight 0.042300
