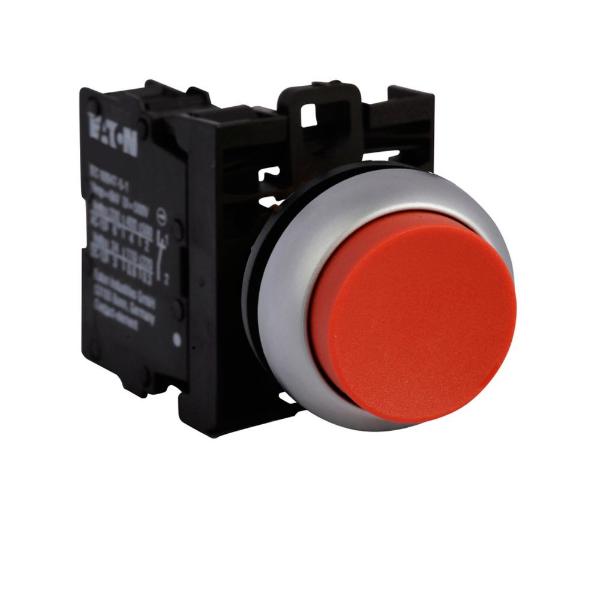

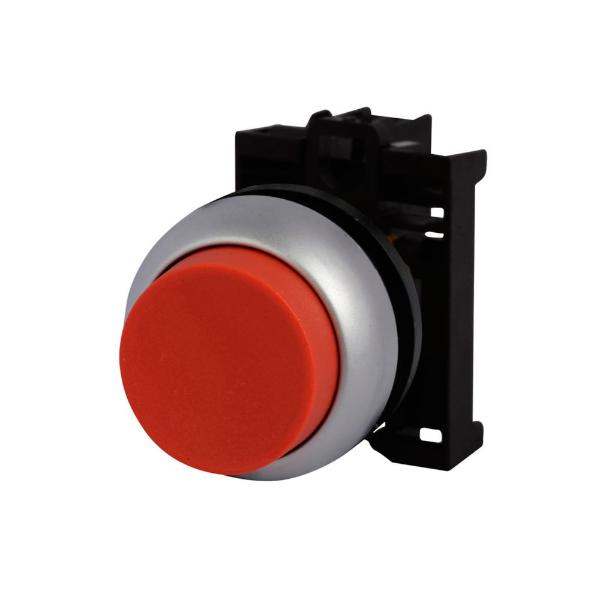

EATON M22-DH-R-K11 Modular Pushbutton, 22.5 mm, Non-Illuminated, Silver Bezel, Red, 1No-1Nc, Ip67, Ip69K

Item: BH4RGN
Model: M22-DH-R-K11
11 In Stock

Ships within 2 days via

£73.09
5.00% off
£69.44/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ac Contact Rating 6A @ 240V
Action Momentary
Actuator Function Momentary
Actuator Type Button, Extended
Bezel Color Silver
Button Color Red
Contact Configuration 1 NC, 1 NO
Dc Contact Rating 3A @ 24V
Display Qty 1
Features Field Conversion From Momentary To Maintained Can Be Done, Includes Contact Block Mounting Adapter
Head Material Plastic
Head/lens Color Red
Height 1 1/2"
Illumination Non-Illuminated
Ip Rating IP67, IP69K
Manufacturer Warranty Length 1 yr.
Nema Enclosure Rating NEMA 13, NEMA 4X
Notes Positively Driven Contact Blocks.
Number Of Operators 1
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -13°F
Operator Illumination Non Illuminated
Operator Material Plastic
Overall Depth 2.56"
Overall Height 1"
Overall Width 1"
Panel Mounting Hole Diameter 22 mm
Product Type Push Button Operators
Push Button Style Flush
Resistance Properties Corrosion Resistant
Series M22 Series
Terminal Connection Spring Cage
Type Pushbutton
Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width 5"
standard BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED

Product Details

Shipping Information

Height 3.81
Length 17.78
Width 12.7
Country Of Origin US
Weight 0.036000
