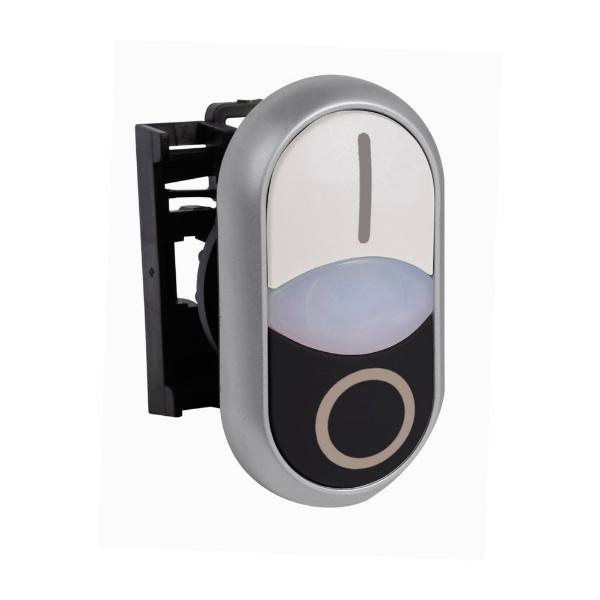

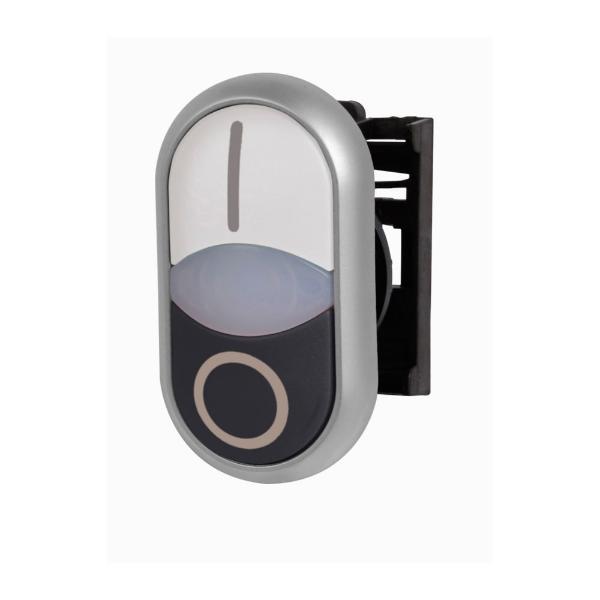

EATON M22-DDL-WS-X1-X0 Modular Pushbutton, 22.5 mm, Illuminated, Top White, Bottom Black, X1, X0 Etching, Ip66
Item: BH4REB
Model: M22-DDL-WS-X1-X0
In Stock
Get it by Thursday, Apr 16
£76.43/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Function | Momentary |
|---|---|
| Actuator Type | Extended, Dual Buttton |
| Application | Pushbutton |
| Bezel Color | Silver |
| Button Color | Black, White |
| Etching Code | X1, X0 |
| Features | M22 Series |
| Height | 13/25" |
| Illumination | Illuminated |
| Ip Rating | IP66 |
|---|---|
| Legend | Top I, Bottom O |
| Length | 2.15" |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Includes Contact Block Mounting Adapter. |
| Operating Cycles | Light: 100,000, Button: 200,000 |
| Type | 22.5 mm Modular |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 1.17" |
Product Details
Shipping Information
| Height | 1.32 |
|---|---|
| Length | 5.46 |
| Width | 2.97 |
| Country Of Origin | US |
|---|---|
| Weight | 0.447800 |
