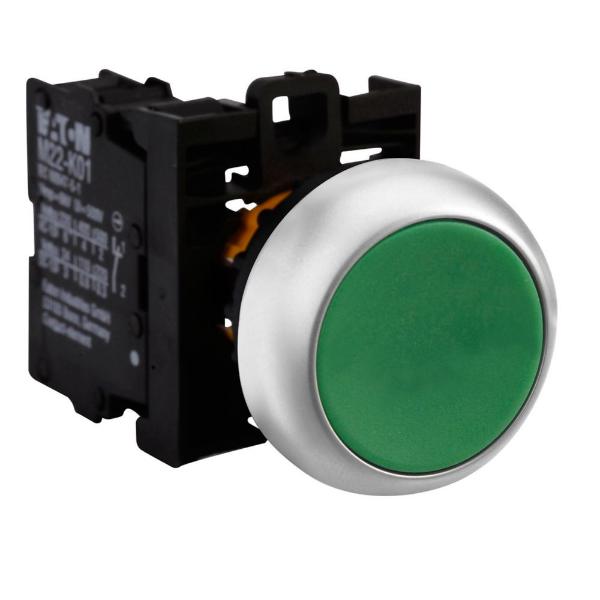

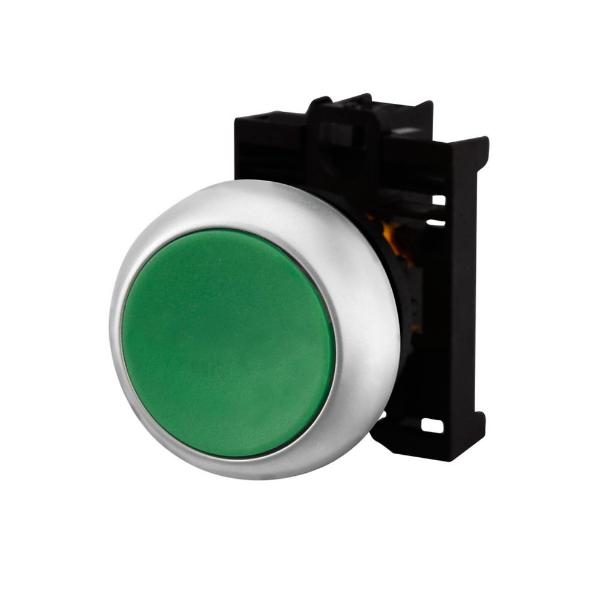

EATON M22-D-G-K20 Modular Pushbutton, 22.5 mm, Green Actuator, Silver Bezel, 2No, Ip67, Ip69K

Item: BH4RFB
Model: M22-D-G-K20
11 In Stock

Ships within 2 days via

£93.53
5.00% off
£88.85/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ac Contact Rating 6A @ 240V
Action Momentary
Actuator Color Green
Actuator Function Momentary
Actuator Type Button, Flush
Bezel Color Silver
Button Color Green
Contact Configuration 2 NO
Dc Contact Rating 3A @ 24V
Display Qty 1
Features Field Conversion From Momentary To Maintained Can Be Done, Includes Contact Block Mounting Adapter
Head Material Plastic
Head/lens Color Green
Height 1 1/2"
Illumination Non-Illuminated
Ip Rating IP67, IP69K
Length 7"
Manufacturer Warranty Length 1 yr.
Mounting Type Flush
Nema Enclosure Rating NEMA 13, NEMA 4X
Number Of Operators 1
Operating Cycles 5 Million
Operating Mode Momentary
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -13°F
Operator Illumination Non Illuminated
Operator Material Plastic
Overall Depth 2.26"
Overall Height 1"
Overall Width 1"
Panel Mounting Hole Diameter 22 mm
Product Type Push Button Operators
Push Button Style Extended
Resistance Properties Corrosion Resistant
Series M22 Series
Standard Logo gost.png,ce.png
Terminal Connection Spring Cage
Type Pushbutton
Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width 5"
standard BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED

Product Details

Pushbutton

Shipping Information

height 3.81
length 17.78
width 12.7
country of origin US
weight 0.036000
