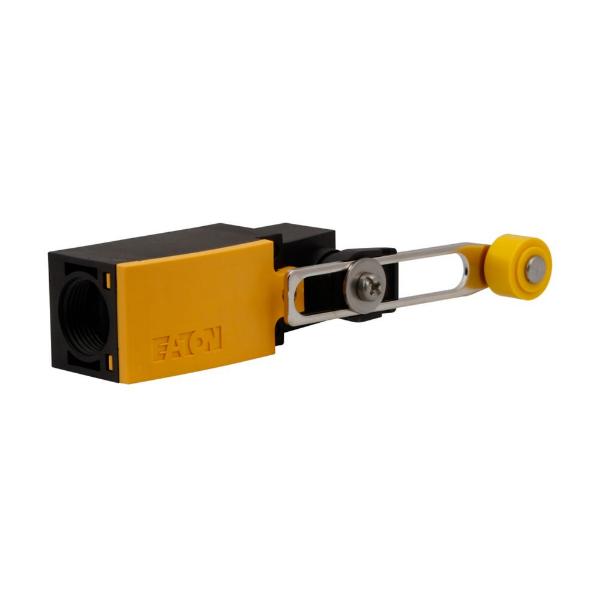

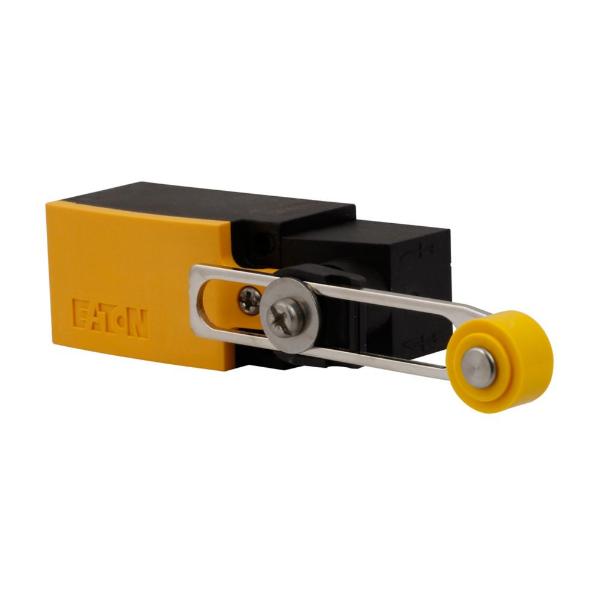

EATON LS-S11S-RRM General Purpose Limit Switch, 4A, 400V, 6 Inch Actuator Lg, Horizontal

Item: BH4QJD
Model: LS-S11S-RRM
18 In Stock

Ships within 2 days via

£156.86
5.00% off
£149.03/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Actuator Type Wobble Stick
Connection Screw Terminal
Contact Configuration 1 NO-1 NC with positive opening contact
Contact Form 1NO/1NC
Contact Rating 6A At 230V AC, 3A At 24V DC
Enclosure Material Plastic
Height 1 8/25"
Length 7.86"
Material Metal
Max. Ac Amps 6A At 230V AC
Max. Dc Amps 3A At 24V DC
Max. Operating Temp. 158°F
Min. Operating Temp. -13°F
Operating Speed 149.96 cm/sec.
Series Ls-Titan Series
Switch Action Momentary/Momentary
Terminal Connection Type Screw Terminals
Type LS-Titan
Warranty 1 yr.
Width 1.22"

Product Details

Shipping Information

Height 3.35
Length 19.96
Width 3.1
Country Of Origin US
Weight 0.090000
