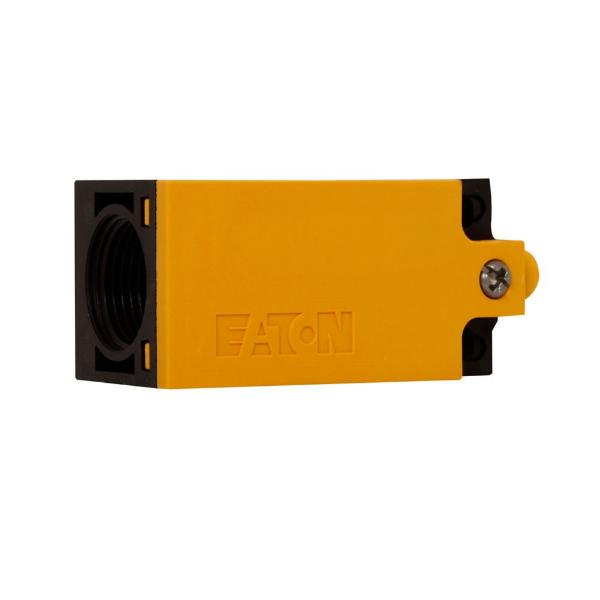

EATON LS-S02-24DMT-ZBZ-X Safety Interlock Switch, Cabinet Door Interlock, 6A Max Ac, 3A Max Dc, 2Nc, 24Vdc Input
Item: BH4QGM
Model: LS-S02-24DMT-ZBZ-X
In Stock
Get it by Wednesday, Apr 15
£1087.38/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Connection | Screw Terminal |
|---|---|
| Contact Configuration | 2 NC, Slow Make Break, Positive Opening |
| Contact Rating | 6A at 240V AC, 3A at 24V DC |
| Enclosure Material | Polyamide |
| Input Voltage | 24V DC |
| Length | 2 9/25" |
| Max. Ac Current | 6A |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 3A |
|---|---|
| Min. Operating Temp. | -13°F |
| Product Height | 6.81" |
| Product Name | Eaton LS-Titan Key Interlock Safety Switches |
| Product Width | 1.21" |
| Switch Type | Cabinet Door Interlock |
| Type | Ls-Titan |
| Warranty | 1 yr. |
Product Details
Safety Switch
Shipping Information
| height | 17.3 |
|---|---|
| length | 5.99 |
| width | 3.07 |
| country of origin | US |
|---|---|
| weight | 0.427500 |
Related Products
| Style | Model | Input Voltage | Switch Type | Contact Rating | Max. Operating Temp. | Min. Operating Temp. | Connection | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | LS-S02-230AFT-ZBZ-X | 230V AC | Cabinet Door Interlock | 6A at 240V AC, 3A at 24V DC | 158°F | -13°F | Screw Terminal | 703.94 | |
| A | LS-S02-120AFT-ZBZ-X | 120V AC | Cabinet Door Interlock | 6A at 240V AC, 3A at 24V DC | 158°F | -13°F | Screw Terminal | 550.34 | |
| A | LS-S02-120AMT-ZBZ-X | 120V AC | Cabinet Door Interlock | 6A at 240V AC, 3A at 24V DC | 158°F | -13°F | Screw Terminal | 522.27 | |
| A | LS-S02-24DFT-ZBZ-X | 24V DC | Cabinet Door Interlock | 6A at 240V AC, 3A at 24V DC | 158°F | -13°F | Screw Terminal | 890.94 |
