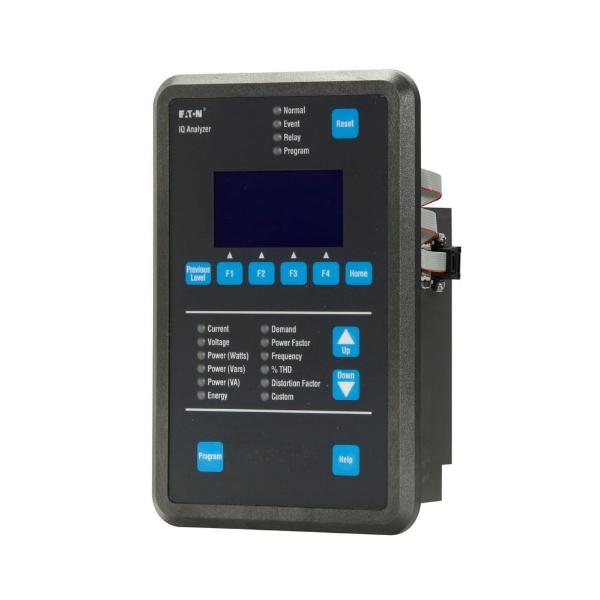

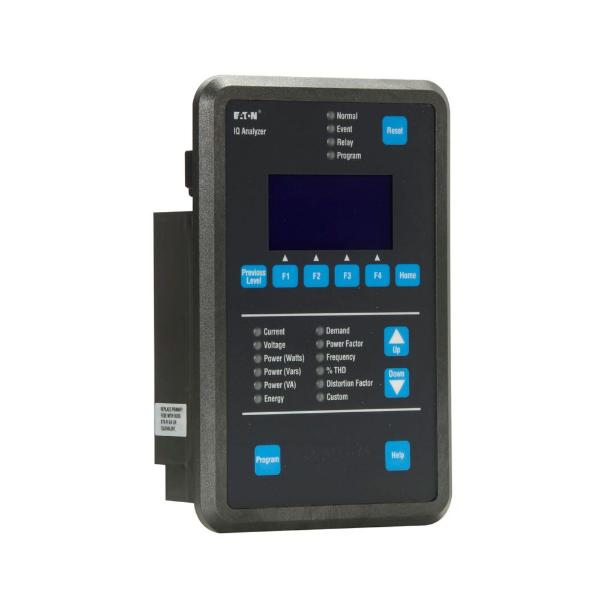

EATON IQA6430 Power And Harmonics Analyzer
Item: BH4DFY
Model: IQA6430
In Stock
Get it by Friday, Apr 17
£29780.84/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| %thd - Amps And Voltage | To 50th |
|---|---|
| Ansi % Revenue Accuracy | C12.20 (0.2) |
| Communications | Fully Programmable wo/ dedicated software INCOM Modbus RTU (RS-485) |
| Height | 8 1/2" |
| I/o Capability | Load Shedding Prog. Pulse Output --Wh, Varh, Vah Analog Output Programmable Relay Outputs Programmable Discrete Inputs Voltage Disturbance Trip KYZ output Analog Input Synchronize Demand Window Pulse Input |
| Individual Harmonics Magnitude | To 50th |
| Length | 13" |
| Logging | Event Log Data Logging Time/Date Stamp |
| Memory | 90 kb |
|---|---|
| Notes | 3-Phase Power Module |
| Power Quality Analysis | K-Factor & Crest Factor |
| Type | IQ Analyzer 6430 |
| Warranty | 1 yr. |
| Waveform Analysis | Voltage Disturbance Wave Capture Trigger Waveform Capture On Threshold/Input |
| Waveform Capture Sampling Rate | 128/cycle |
| Width | 11.05" |
Product Details
Shipping Information
| Height | 21.59 |
|---|---|
| Length | 33.02 |
| Width | 28.07 |
| Country Of Origin | US |
|---|---|
| Weight | 1.800000 |
