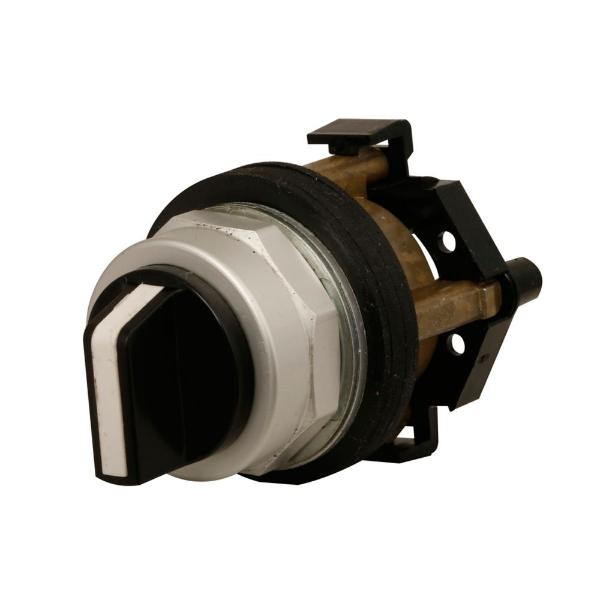

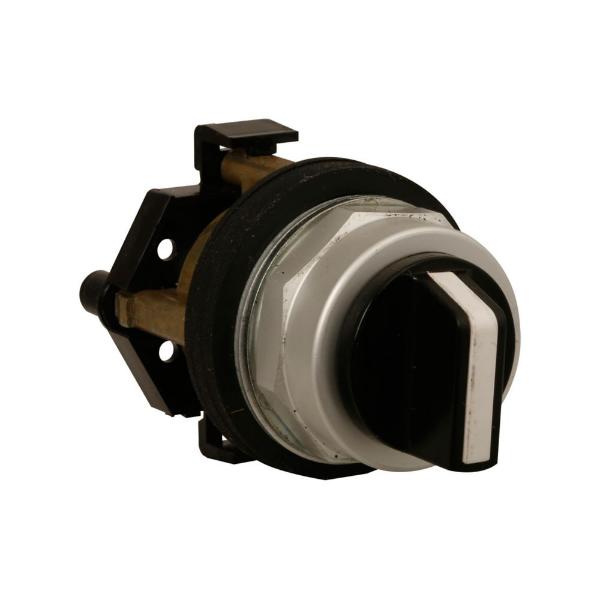

EATON HT8JAH3AF1Q1 Non-Illuminated Selector Switch, 30mm Size, 2 Position, Maintained/Maintained, Metal, Knob

Item: BH3NTZ
Model: HT8JAH3AF1Q1
16 In Stock

Ships within 2 days via

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£325.48
5.00% off
£309.2/unit
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ac Contact Rating 10A @ 600V
Action Maintained/Maintained
Actuator Color Black
Actuator Type Knob
Bezel Chrome
Bezel Material Chrome
Cam 3A
Cam Code Cam 3A
Contact Block Material Metal
Contact Configuration Right, 1 NO 1 NC Left, 1 NO 1 NC
Contact Form 1NO/1NC
Dc Contact Rating 5A @ 250V
Hazardous Location Specification Not Rated
Height 5"
Illumination Non-Illuminated
Ip Rating IP68
Length 3"
Manufacturer Warranty Length 1 yr.
Nema Enclosure Rating NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Number Of Positions 2
Operating Mode Maintained
Operator Head Color Black
Operator Head Material Polymer
Operator Illumination Non Illuminated
Overall Depth 3"
Overall Height 5"
Overall Width 2"
Panel Mounting Hole Diameter 30 mm
Series Ht800 Series
Size 30.5 mm
Standard Logo csa.png,ul.png
Standards Csa, Ul Listed
Switch Function @ 1st Position On
Switch Function @ 2nd Position On
Switch Function @ 3rd Position No Third Position
Switch Function @ 4th Position No Fourth Position
Switch Head Type Short Lever
Type 30.5 mm, Watertight/Oiltight-HT800
Warranty 1 yr.
Width 2"

Product Details

Selector Switch

Shipping Information

height 12.7
length 7.62
width 5.08
country of origin US
weight 0.180000
