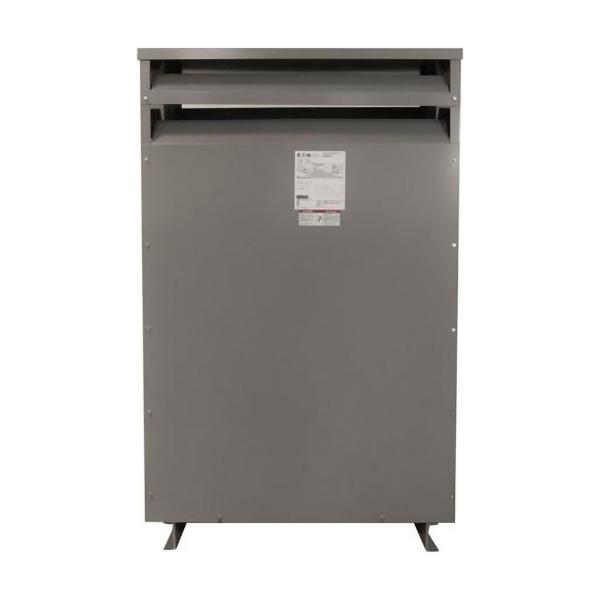

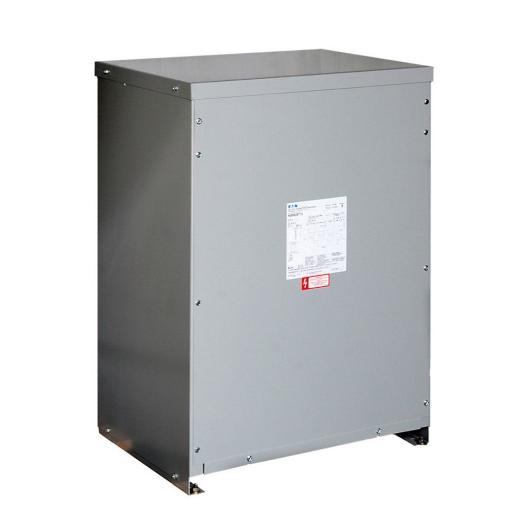

EATON H48M28T15NVSS Non-Ventilated Transformer, Non Linear, 3-Phase, PV 480V, SV 208Y/120V, 15 KVA
Item: BH9XET
Model: H48M28T15NVSS
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£13085.74/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Coil Material | Aluminum |
|---|---|
| Design | K-4 |
| Enclosure Material | Stainless Steel |
| Enclosure Type | Totally Enclosed Non Ventilated |
| Frame | 912BN |
| Frequency Rating | 60 Hz |
| Grade | Grade 304 |
| Height | 30" |
| Kva Rating | 15 kVA |
| Length | 16 1/2" |
|---|---|
| Phase | 3 |
| Primary Voltage | 480V |
| Secondary Voltage | 208Y/120V |
| Special Features | Electrostatically Shielded |
| Tap Size | 2 At +2.5% FCAN, 4 At -2.5% FCBN |
| Temp. Rise | 150°C |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
Product Details
Transformer
Shipping Information
| height | 76.2 |
|---|---|
| length | 41.91 |
| width | 58.42 |
| country of origin | US |
|---|---|
| weight | 163.800000 |
