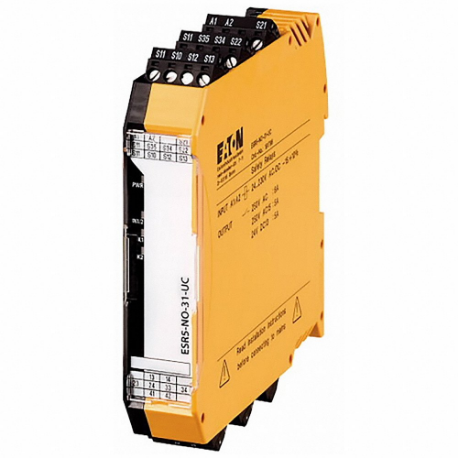

EATON ESR5-NO-31-UC Safety Monitoring Relay, DIN-Rail Relay Mounting, 24 Pins/Terminals, 230 VAC/24 to 230 VDC
Item: CP4AVL
Model: ESR5-NO-31-UC
12 In Stock
Ships within 2 days via
5.00% off
£1440.61/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Ac Contact Rating | 5A @ 240V |
|---|---|
| Application | Emergency Stops, Emergency Switching Off, Feedback Circuit, Light Curtain, Protective Door |
| Body Depth | 4.7" |
| Body Depth - Relay | 4.7" |
| Body Height | 1 1/5" |
| Body Width | 4 4/5" |
| Control Voltage 1 | 230V |
| Control Voltage 1 - Min | 24V |
| Control Voltage 2 - Max | 230V |
| Control Voltage 2 - Min | 24V |
| Dc Contact Rating | 6A @ 24V |
| Electric Connection Type | Screw Connection |
| Electrical Connection | Screw Terminal |
| Electrical Connection Type | Screw |
| Environmental Protection | Finger Safe |
| Equipment Heat Dissipation | 2.7 W |
| For Use With | Interrupt Electrical Circuits, Monitoring One Or Two-Channel Signal Generators And Control Of Actuators |
| Frequency | 50/60 Hz |
| Input Voltage | 24-230V DC/230V AC |
| Ip Rating | IP20 |
| Max. Operating Voltage @ 60 Hz | 230V |
| Min. Supply Voltage @ 50 Hz | 24V |
| Model | Basic Device |
| Mounting Width | 22.5 mm |
| Number Of Input Channels | 2 |
| Number Of Inputs | 1 |
| Number Of Pins | 24 |
|---|---|
| Number Of Pins - Relay | 24 |
| Number Of Terminals | 24 |
| Operating Voltage At Ac, 50 Hz - Max | 230V |
| Operating Voltage At Ac, 60 Hz - Min | 24V |
| Operating Voltage At Dc - Max | 230V |
| Operating Voltage At Dc - Min | 24V |
| Output Switch Configuration | (1) NC, (3) NO |
| Overall Depth | 1 1/5" |
| Overall Height - Relay | 3.9" |
| Power Consumption | 2.9 W |
| Product Height | 1 1/5" |
| Product Width | 4 4/5" |
| Rated Control Supply Voltage (us) At Dc - Min | 24V |
| Rated Control Supply Voltage At Dc | 230V |
| Rated Insulation Voltage | 250V |
| Rated Switch Current | 5A |
| Relay Mounting Style | Din Rail |
| Safety Performance Level | Level E |
| Safety Reliability Data | Cat. 4, Pl E, Sil 3, Silcl 3 |
| Status Indicator | LED Indicator |
| Supply Voltage At Ac, 50 Hz - Max | 230V |
| Supply Voltage At Ac, 60 Hz - Max | 230V |
| Supply Voltage At Dc - Max | 230V |
| Supply Voltage At Dc - Min | 24V |
| standard | CE CERTIFIED, CSA CERTIFIED, IEC RATED, UL LISTED |
Product Details
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 0.225000 |
