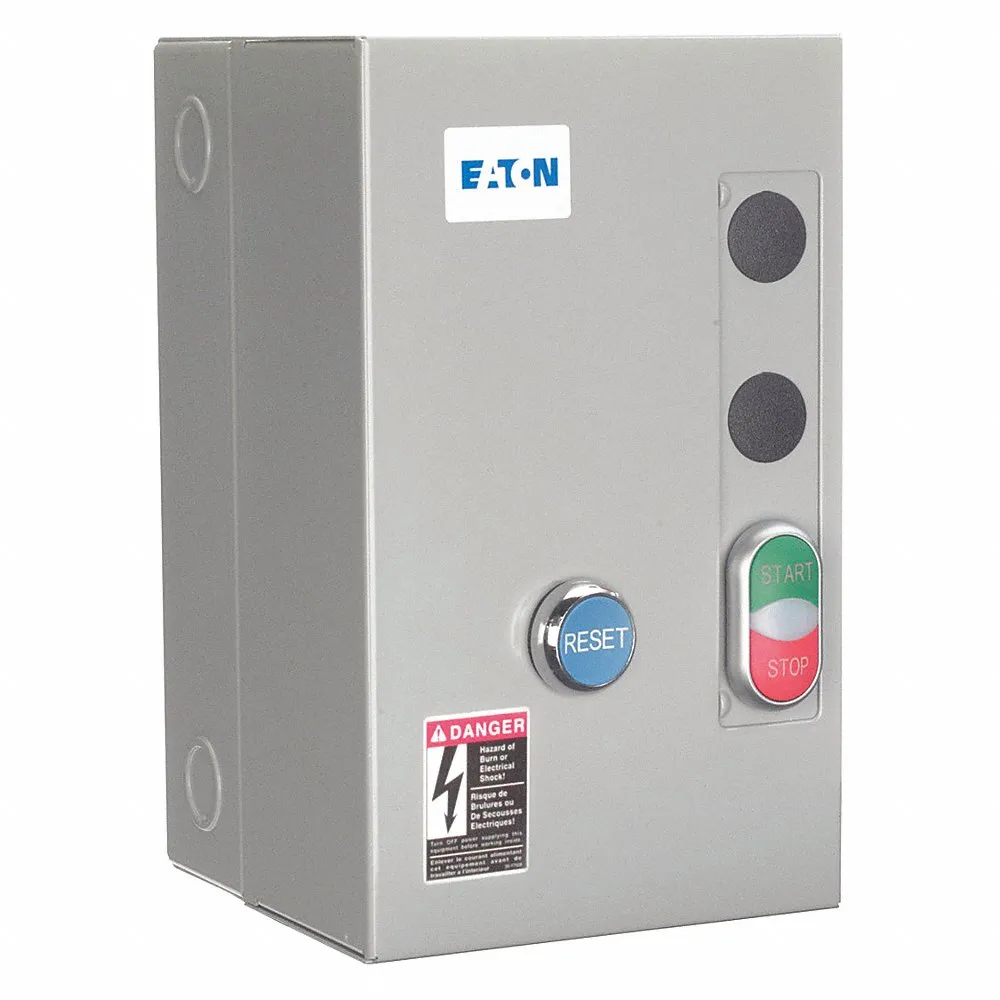

EATON ECX09C1CBA-R63/C IEC Magnetic Motor Starter, Non-Reversing, 3 Poles, Electronic Protection, 9 A, 480 VAC

Item: BJ3WXL
Model: ECX09C1CBA-R63/C
11 In Stock

Ships within 2 days via

£957.61
5.00% off
£909.74/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Action Nonreversing
Amps Rating 9A
Auxiliary Contacts Included 1NO/1NC
Coil Voltage 480V AC
Depth 4.81"
Exterior Operator Controls Stop, Start Push Buttons
Features Start/Stop Push Button
Frequency 50/60 Hz
Height 9.51"
Horsepower @ Single Phase - 120v Ac 1/2 hp
Horsepower @ Three Phase 7 1/2 hp
Horsepower @ Three Phase - 208v Ac 2 hp
Hp @ 1 Phase - 120v 1 hp
Hp @ 1 Phase - 240v 1 hp
Hp @ 3 Phase - 208v 2 hp
Hp @ 3 Phase - 240v 2 hp
Hp @ 3 Phase - 480v 5 hp
Hp @ 3 Phase - 575v 7 1/2 hp
Hp @ Single Phase - 240v Ac 1 1/2 hp
Hp @ Three Phase - 600v Ac 7 1/2 hp
Includes Start/Stop Push Button
Includes Auxiliary Contacts Yes
Ip Rating IP23
Max Current (ac) 9A
Max. Overload Relay Amps Setting 20A
Maximum Voltage Rating 690V AC
Minimum Overload Relay Current Setting 4A
Mounting Style Surface
Nema Enclosure Rating 1
Nema Size Not Applicable
Nominal Coil Voltage @ 60hz 480V AC
Number Of Auxillary Contacts 2
Number Of Poles 3
Operator Push Button
Overall Depth 14"
Overall Height 8 1/2"
Overall Width 9"
Overload Protection Type Electronic
Phase Three
Reversing Capability Non-reversing
Series Xt Series Series
Standards Cul Listed, Ul Listed
Starter Style IEC
Thermal Unit Code Not Applicable
Trip Class Class 10A, Class 10, Class 20, Class 30
Width 5.62"
Pilot Lights Included None

Product Details

Magnetic Motor Starter

Shipping Information

height 21.59
length 35.56
width 22.86
country of origin US
weight 4.500000
