| Auxiliary Contact Form | 1NO |
|---|---|
| Control Transformer | Yes |
| Electrical Operating Durability | 100000 |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 208v Ac | 30 hp |
| Horsepower @ Three Phase - 240v Ac | 30 hp |
| Horsepower @ Three Phase - 480v Ac | 50 hp |
| Includes Auxiliary Contacts | Yes |
| Includes Pilot Light | No |
| Ip Rating | IP20 |
| Max Current (ac) | 90A |
| Maximum Overload Relay Current Setting | 100A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 20A |
| Mounting Postion | Horizontal, Vertical |
| Mounting Style | Through Panel |
| Nema Enclosure Rating | NEMA 4X |
| Nema Size | 3 |
| Nominal Coil (secondary) Voltage | 120V AC |
|---|---|
| Nominal Control (primary) Voltage | 240/480V AC |
| Number Of Poles | 3 |
| Number Of Terminals | 3 |
| Operator Type | No Operator |
| Overload Protection Type | Electronic |
| Phase | Three |
| Resistance Properties | Impact Resistant, Tamper Resistant |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Short Circuit Protection | Fusible Disconnect |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10, Class 20, Class 30 |
| Ul Fuse Class | Class R |
| Wire Termination Type | Screw |
| standard | ABS, CSA, OSHPD, UL LISTED |

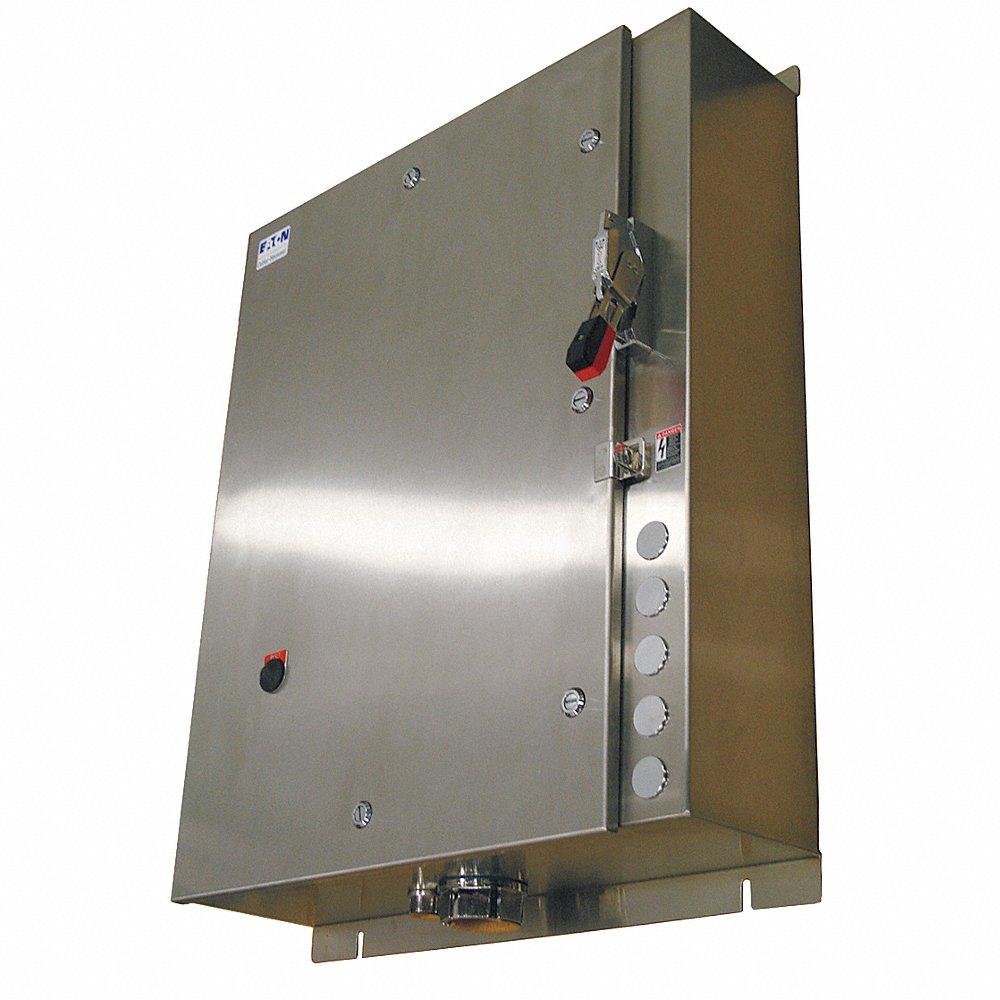

NEMA Fusible Combination Starter
| Style | Model | Control Transformer | Nema Size | Overall Height | Hp @ 3 Phase - 480v | Hp @ 3 Phase - 240v | Height | Short Circuit Protection | Trip Class | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ECN1601BAB-R63/C | No | - | 11.1" | - | - | - | Fusible Disconnect | Class 10, Class 20, Class 30 | - |
RFQ
|
| A | ECN1611AAB-R63/D | No | 1 | 11.1" | 10 hp | 7 1/2 hp | - | Fusible Disconnect | Class 10, Class 20, Class 30 | 2,669.69 | |
| A | ECN1611AAB-R63/C | No | 1 | 11.1" | 10 hp | 7 1/2 hp | - | Fusible Disconnect | Class 10, Class 20, Class 30 | 2,274.46 | |
| A | ECN1611AAC-R63/CL30 | No | 1 | 11.1" | - | - | - | Fusible Disconnect | Class 10, Class 20, Class 30 | 2,700.31 | |
| A | ECN1611AAC-R63/D | No | 1 | 11.1" | 10 hp | 7 1/2 hp | 11.1" | Fusible Disconnect | Class 10, Class 20, Class 30 | 2,274.48 | |
| A | ECN1621AAD-R63/D | No | 2 | 11.1" | 25 hp | 15 hp | - | Fusible Disconnect | Class 10, Class 20, Class 30 | 3,878.66 | |
| A | ECN1621AAE-R63/D | No | 2 | 11.1" | 25 hp | 15 hp | 11.1" | Fusible Disconnect | Class 10, Class 20, Class 30 | 3,119.86 |
