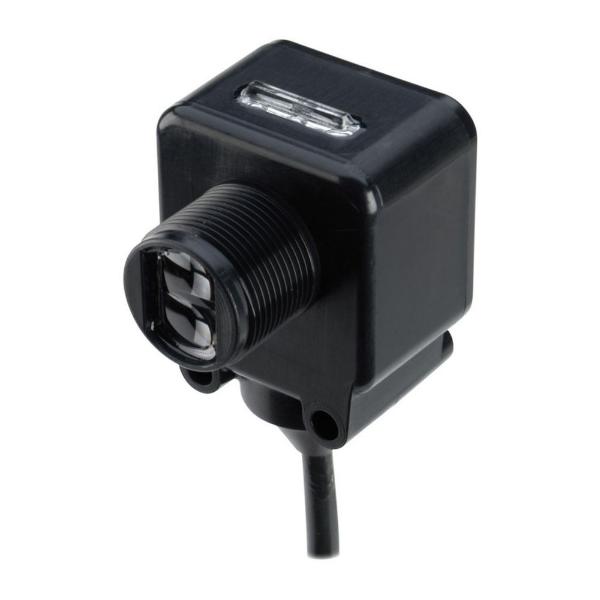

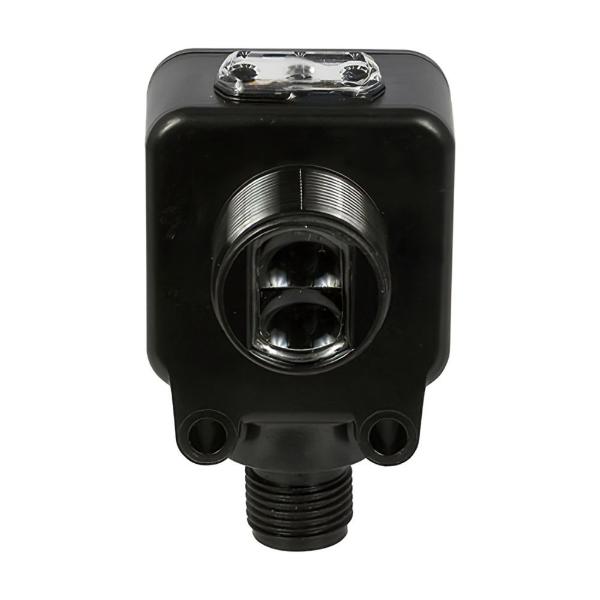

EATON E65-SMTD15-HL Cylindrical Photoelectric Sensor Receiver, 10 to 30 VDC, NPN/PNP, 2m Cable, Light On

Item: BJ3EGL
Model: E65-SMTD15-HL
26 In Stock

Ships within 2 days via

£168.19
5.00% off
£159.78/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Body Material Resin
Cable Sheath Material PVC
Contact Configuration NPN And PNP Open Collector
Contact Rating 100 MA at 10-30V DC
Cord Length 79.2 ft.
Dc Supply Voltage Rating 10-30V DC
Display Qty 1
Electrical Connection Bare Wire
Electrical Installation Type Prewired Cable
Emitted Sensor Light Red Light
Enclosure Lens Material Polycarbonate
Enclosure Material Cycoloy
Features Auto Reset Short Circuit
Height 1.47"
Includes Indicator Lights Indicator Lights Included
Input Voltage 10-30V DC
Ip Rating IP68, IP69K
Led Indicator Targetlock, Orange Power, Green Output, Red
Length 1.29"
Load Current - Maximum 100 mA
Max. Operating Temp. 131°F
Maximum Dc Current 100 mA
Nema Enclosure Rating NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
Nominal Sensor Diameter M18 Threaded
Operating Temperature - Min -13°F
Output Circuit NPN, PNP
Output Circuit Type NPN And PNP
Overall Depth 33 mm
Overall Diameter 18 mm
Overall Height 37 mm
Overall Width 55 mm
Product Name Eaton E65 SM Compact Photoelectric Sensor
Protection Type Auto Reset Short Circuit
Response Time 1 ms
Sensing Distance - Maximum 15m
Sensing Distance - Minimum 30 mm
Sensing Method Through Beam
Sensor Body Style Cylindrical
Sensor Cable Length 2m
Sensor Diameter 18 mm
Sensor Face Orientation Right Angle
Sensor Switching Mode Light On
Sensor Type Through Beam
Series E65 SM Series
Supply Voltage 10-30V DC
Supply Voltage Type Dc Only
Switching Frequency 500 Hz
Through Beam Sensor Component Photoelectric Sensor Receiver
Type Photoelectric Sensor
Warranty 3 yrs.
Width 2.17"
standard CE, CUL, UL LISTED

Product Details

Shipping Information

Height 3.73
Length 3.28
Width 5.51
Country Of Origin US
Weight 0.112500
