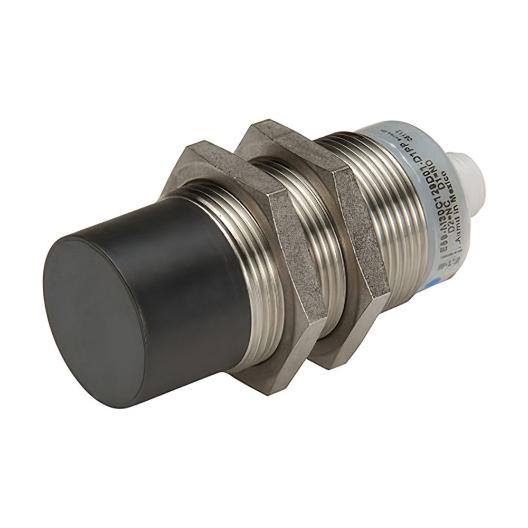

EATON E59-M30A115C02-A2 Inductive Proximity Sensor, Dist. 15 Mm, 2-Wire Ac, 6.6 Ft. Cable, 20-132 VAC Input
Item: BJ3EBW
Model: E59-M30A115C02-A2
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Accuracy | Less Than 1% Of Sensing Distance |
|---|---|
| Actuator Function | Shielded |
| Cable Length | 79.2 ft. |
| Cable Material | PVC |
| Connection | 6.6 Ft (2 M) Cable |
| Contact Configuration | 2-wire AC, NC |
| Contact Rating | 300 mA at 132V AC |
| End Bell Material | Polycarbonate |
| Front Cap Material | Polyphenylene Sulfide |
| Input Voltage | 20-132V AC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Green Power Up Turns Red When Output Energized |
|---|---|
| Length | 1.18" |
| Max. Ac Current | 300 mA |
| Min. Operating Temp. | -40°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Product Height | 2.74" |
| Product Name | Eaton E59 IProx Programmable Inductive Proximity Sensor |
| Product Width | 1.18" |
| Sensor Type | Inductive Proximity |
| Tube Material | Stainless Steel |
| Warranty | 1 yr. |
Product Details
Proximity Sensor
Shipping Information
| height | 6.96 |
|---|---|
| length | 3 |
| width | 3 |
| country of origin | US |
|---|---|
| weight | 0.272800 |
