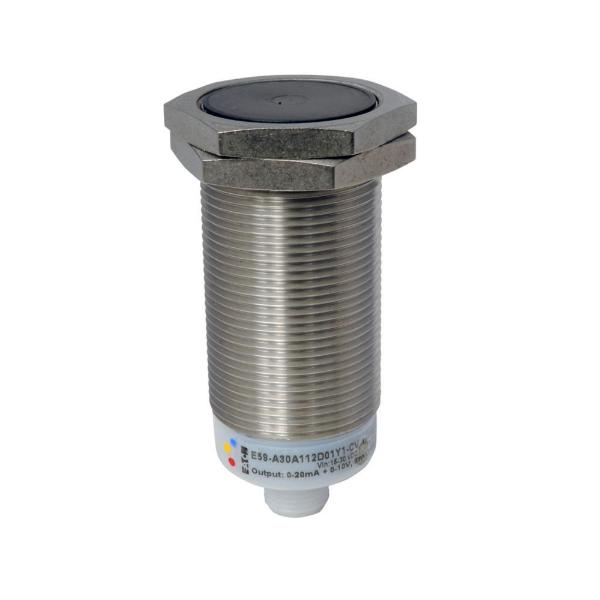

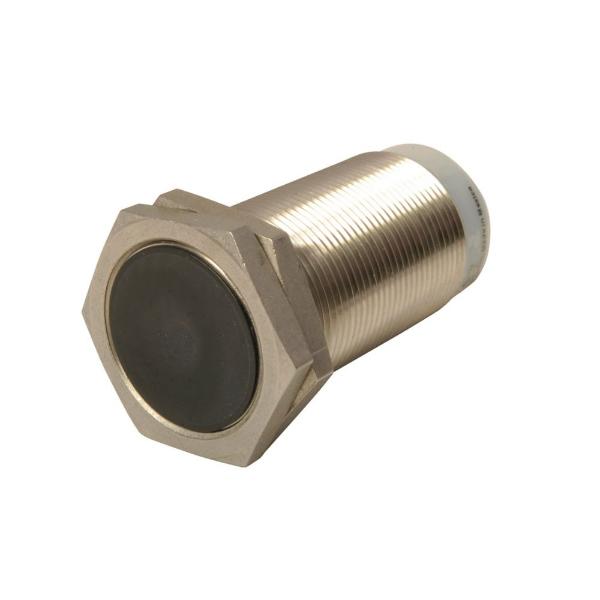

EATON E59-A30C125D01-CV Cylindrical Proximity Sensor, 15 to 30 VDC, 100 Hz Proximity Sensor, 0 to 10V/0 to 20 mA

Item: BJ3DXB
Model: E59-A30C125D01-CV
26 In Stock

Ships within 2 days via

£685.72
5.00% off
£651.43/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ac Supply Voltage Rating Not Rated
Accuracy <30 Um After 1 Hour Warmup
Actuator Function Unshielded
Analog Output 0-10V DC, 0-20 mA
Body Finish Nickel Plated
Body Material Stainless Steel
Connection 4-pin M12 Connector
Dc Supply Voltage Rating 15-30V DC
Display Qty 1
Electrical Connection M12
Electrical Installation Type Direct Connector
End Bell Material Polycarbonate
Features Extreme Temperature Resistant, High Output Resolution, High Pressure Resistant, Washdown Resistant
Front Cap Material Polyphenylene Sulfide
Includes Indicator Lights No Indicator Lights Included
Input Voltage 15-30V DC
Ip Rating IP67, IP69K
Length 1.18"
Max. Operating Temp. 158°F
Min. Operating Temp. -40°F
Nema Enclosure Rating NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
Nominal Sensor Diameter M30 Threaded
Number Of Pins 4
Number Of Wires 3
Output Circuit Analog
Output Circuit Current - Maximum 20 mA
Output Circuit Current - Minimum 0 mA
Output Circuit Type Analog
Output Circuit Voltage - Maximum 10V
Output Circuit Voltage - Minimum 0V
Overall Height 74 mm
Product Height 2 23/25"
Product Name Eaton E59 AccuProx Analog Inductive Proximity Sensor
Product Width 1.18"
Protection Type Reverse Polarity And Short Circuit
Sensing Distance - Maximum 25 mm
Sensing Face Shielding Unshielded
Sensing Method Inductive
Sensor Body Style Cylindrical
Sensor Diameter 30 mm
Sensor Type Inductive Proximity Analog Inductive Proximity
Series E59 Series
Standards Ce, Csa, Ul Listed
Supply Voltage 15-30V DC
Tube Material Stainless Steel
Warranty 1 yr.

Product Details

Shipping Information

Height 7.42
Length 3
Width 3
Country Of Origin US
Weight 0.168800
