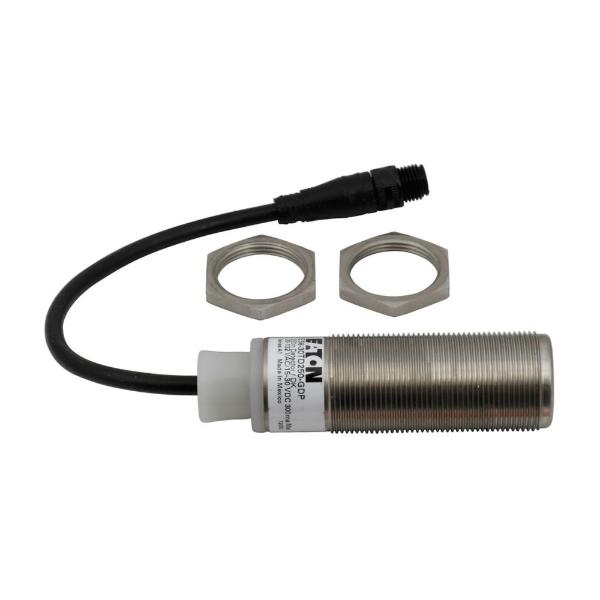

EATON E58-30TD250-GDP Photoelectric Sensor, 30 Mm, 300 mA At 20-132 VAC/15-30 VDC, 20-132 VAC 50/60 Hz

Item: BJ3DRQ
Model: E58-30TD250-GDP
In Stock

Get it by Wednesday, Apr 15

£789.04/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Connection Dual Key Micro
Contact Configuration AC, L1 Switched DC, NPN Open Collector
Contact Rating 300 MA at 20-132V AC/15-30V DC
Enclosure Material Stainless Steel
Height 1.18"
Input Voltage 20-132V AC @ 50/60 Hz, 15-30V DC
Ip Rating IP69K
Length 4 9/25"
Max. Ac Amps 300 mA
Max. Operating Temp. 131°F
Maximum Dc Current 300 mA
Nema Enclosure Rating NEMA 1, NEMA 12, NEMA 12K, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
No. Of Pins 4
Operating Mode Dark
Operating Temperature - Min -40°F
Product Name Eaton Harsh-duty Sensor
Protection Type Latching Short Circuit
Sensor Type Through Beam
Series E58 Harsh Duty
Warranty 3 yrs.
Width 1.18"

Product Details

Sensor

Shipping Information

height 3
length 11.07
width 3
country of origin US
weight 0.238500
