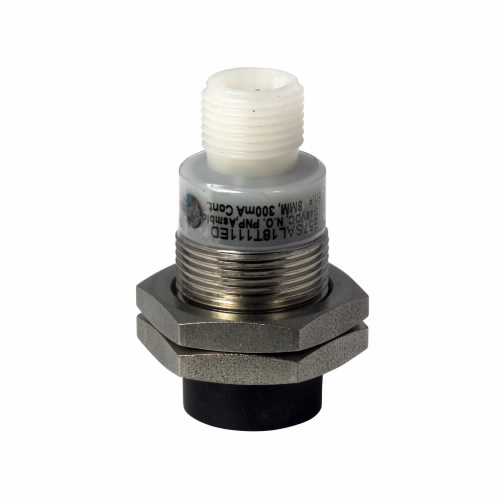

EATON E57SAL18T111ED Inductive Proximity Sensor, Dist. 8 Mm, 250 mA At 6-48VDC, 6-48 VDC Input, Unshielded
Item: BJ3DJN
Model: E57SAL18T111ED
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£0.00/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Accuracy | Less Than 3% |
|---|---|
| Actuator Function | Unshielded |
| Connection | 4-pin M12 Connector |
| Contact Configuration | PNP Open Collector, NO |
| Contact Rating | 250 mA at 6-48V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.71" |
| Max. Operating Temp. | 158°F |
|---|---|
| Maximum Dc Current | 500 mA |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Product Height | 1.59" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Short Circuit Protected |
| Sensor Type | Inductive Proximity |
| Warranty | 1 yr. |
Product Details
Proximity Sensor
Shipping Information
| height | 4.04 |
|---|---|
| length | 1.8 |
| width | 1.8 |
| country of origin | US |
|---|---|
| weight | 0.064700 |
Related Products
| Style | Model | Ip Rating | Cable Length | Number Of Pins | Max. Operating Temp. | Min. Operating Temp. | Cable Material | Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | E57SAL12A2 | IP67, IP69K | 79.2 ft. | - | 158°F | -13°F | PVC | - | 502.07 | |
| A | E57SAL12A2EA | IP67 | - | - | 158°F | -13°F | - | - | 517.70 | |
| A | E57SAL12A2S5 | IP67, IP69K | 196.8 ft. | - | 158°F | -13°F | PVC | - | 383.91 | |
| B | E57SAL12T110E | IP67 | 79.2 ft. | - | 158°F | -13°F | PVC | - | 383.68 | |
| A | E57SAL12A2SA | IP67 | - | - | 158°F | -13°F | - | - | 644.26 | |
| C | E57SAL12A2E | IP67, IP69K | 79.2 ft. | - | 158°F | -13°F | PVC | - | 693.29 | |
| D | E57SAL12T110ED | IP67, IP69K | - | - | 158°F | -13°F | - | - | 383.68 |
