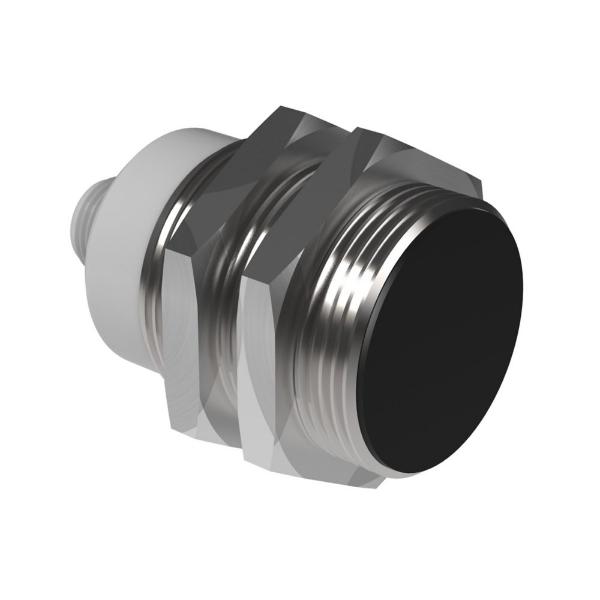

EATON E57PS-30SPN10-Q Cylindrical Proximity Sensor, 10 to 48 VDC, 600 Hz Proximity Sensor, 3 Wire PNP, Metal

Item: BJ3DEK
Model: E57PS-30SPN10-Q
20 In Stock

Ships within 2 days via

£361.99
5.00% off
£343.9/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ac Supply Voltage Rating Not Rated
Body Material Stainless Steel
Dc Supply Voltage Rating 10-48V DC
Display Qty 1
Electrical Connection Micro
Electrical Installation Type Direct Connector
Features 360 Degree Led Indicator, Laser-Engraved Label, Short Circuit Protection
Includes Indicator Lights Indicator Lights Included
Ip Rating IP69K
Length 5"
Load Current - Maximum 300 mA
Nema Enclosure Rating NEMA 4, NEMA 4X, NEMA 6, NEMA 6P
Nominal Sensor Diameter M30 Threaded
Number Of Pins 4
Number Of Wires 3
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -40°F
Output Circuit PNP
Output Circuit Contact Form No
Output Circuit Type PNP
Overall Height 45 mm
Product Height 2"
Product Name Eaton E57 Inductive Proximity Sensor
Product Width 2"
Sensing Distance - Maximum 10 mm
Sensing Face Shielding Shielded
Sensing Method Inductive
Sensor Body Style Cylindrical
Sensor Diameter 30 mm
Series E57 Series
Standard Logo UL.png
Supply Voltage 10-48V DC
Type Inductive Proximity Sensor
Warranty 1 yr.

Product Details

Proximity Sensor

Shipping Information

height 5.08
length 12.7
width 5.08
country of origin US
weight 0.090000
