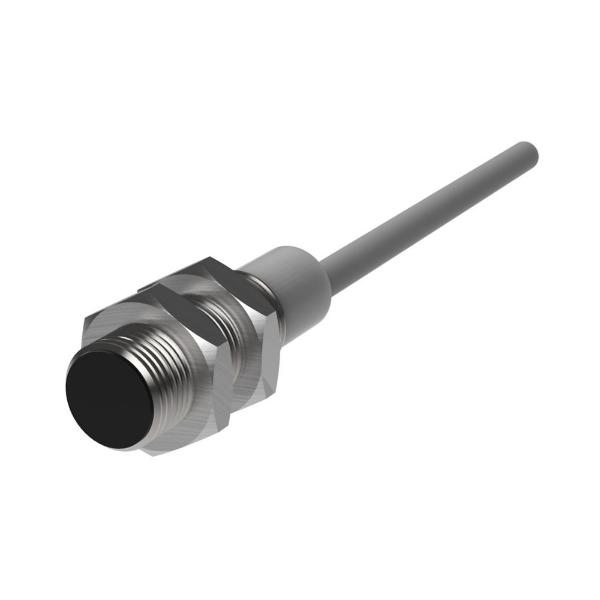

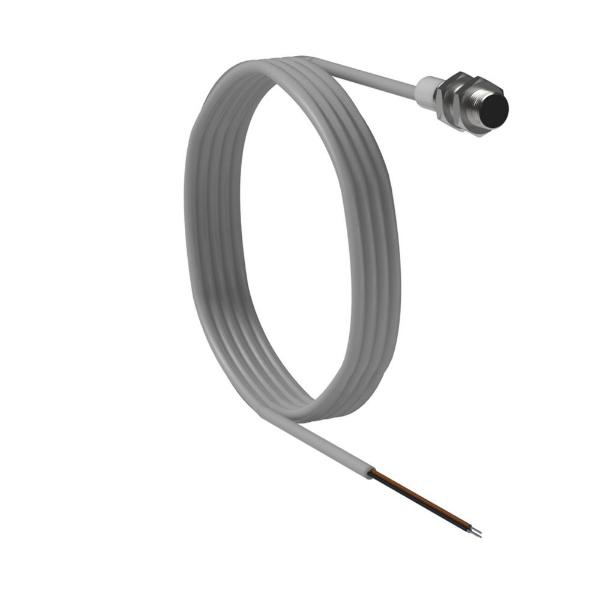

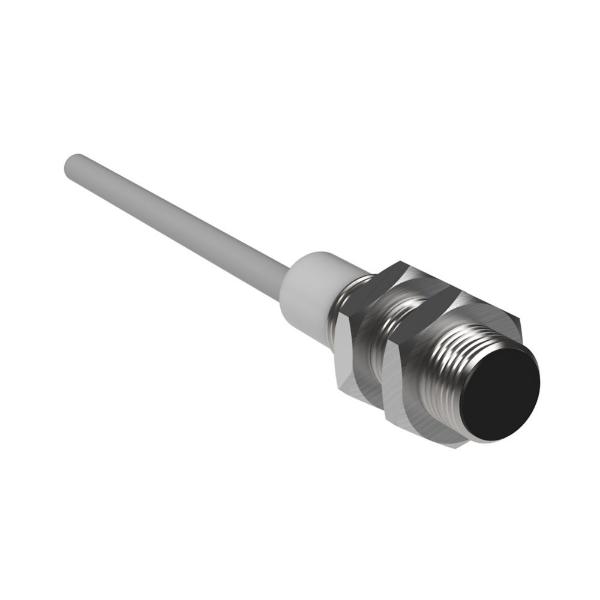

EATON E57PS-12SPN2-C2 Cylindrical Proximity Sensor, 10 to 48 VDC, 2000 Hz Proximity Sensor, 3 Wire PNP, Metal
Item: BJ3DDA
Model: E57PS-12SPN2-C2
11 In Stock
Ships within 2 days via
5.00% off
£348.22/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Supply Voltage Rating | Not Rated |
|---|---|
| Body Material | Stainless Steel |
| Dc Supply Voltage Rating | 10-48V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Features | 360 Degree Led Indicator, Laser-Engraved Label, Short Circuit Protection |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP69K |
| Length | 6 1/4" |
| Load Current - Maximum | 300 mA |
| Nema Enclosure Rating | NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Nominal Sensor Diameter | M12 Threaded |
| Number Of Wires | 3 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -40°F |
| Output Circuit | PNP |
| Output Circuit Contact Form | No |
|---|---|
| Output Circuit Type | PNP |
| Overall Height | 42 mm |
| Product Height | 2" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 5 1/4" |
| Sensing Distance - Maximum | 2 mm |
| Sensing Face Shielding | Shielded |
| Sensing Method | Inductive |
| Sensor Body Style | Cylindrical |
| Sensor Cable Length | 2m |
| Sensor Diameter | 12 mm |
| Series | E57 Series |
| Standard Logo | UL.png |
| Supply Voltage | 10-48V DC |
| Type | Inductive Proximity Sensor |
| Warranty | 1 yr. |
Product Details
Proximity Sensor
Shipping Information
| height | 5.08 |
|---|---|
| length | 15.88 |
| width | 13.34 |
| country of origin | US |
|---|---|
| weight | 0.135000 |
