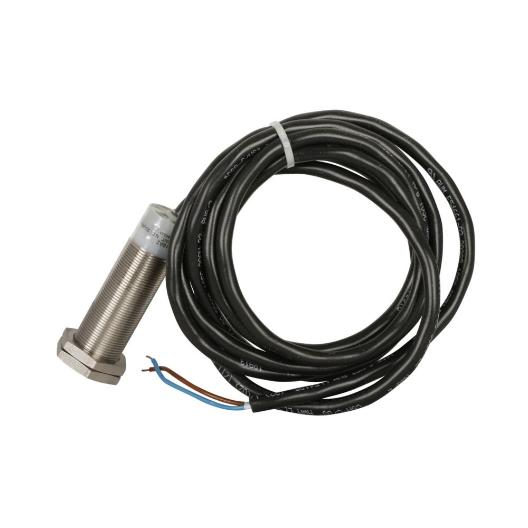

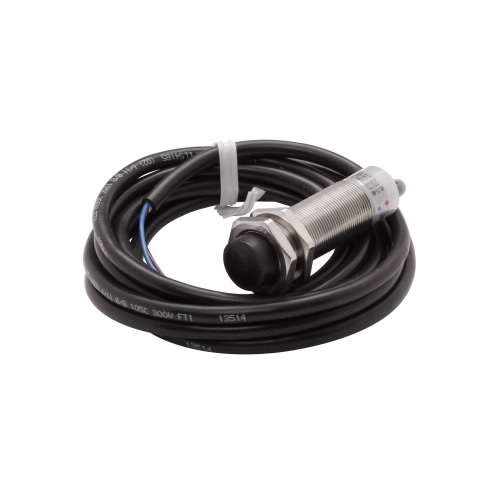

EATON E57LBL18A2E Inductive Proximity Sensor, Straight, Unshielded, 6.6 Ft., Pvc, 2-Wire Ac, 20-250V
Item: BJ3CUT
Model: E57LBL18A2E
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Accuracy | Less Than 3% Sensing Range |
|---|---|
| Actuator Function | Unshielded |
| Cable Length | 79.2 ft. |
| Contact Configuration | 2-wire AC, NC |
| Contact Rating | 250 mA at 250V AC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 20-250V |
| Ip Rating | IP67, IP69K |
| Led Indicator | 360 AA Viewable LED |
| Length | 2 3/5" |
| Max. Ac Current | 250 mA |
|---|---|
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Product Height | 0.71" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Temperature Rating | -13°F to +158°F |
| Type | E57 |
| Warranty | 1 yr. |
Product Details
Proximity Sensor
Shipping Information
| height | 1.8 |
|---|---|
| length | 6.6 |
| width | 1.8 |
| country of origin | US |
|---|---|
| weight | 0.315000 |
Related Products
| Style | Model | Ip Rating | Cable Length | Contact Rating | Max. Operating Temp. | Number Of Pins | Diameter | Height | Number Of Wires | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | E57LAL12A2EP | IP67 | 8" | 250 mA at 250V AC | 158°F | - | - | - | - | 786.20 | |
| A | E57LAL12A2E4 | IP67 | 157.2 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | 357.97 | |
| B | E57LAL12A2EA | IP67, IP69K | - | 250 mA at 250V AC | 158°F | 3 | - | - | - | 472.67 | |
| B | E57LAL12A2E5 | IP67, IP69K | - | 250 mA at 250V AC | 158°F | - | - | - | - | 384.61 | |
| C | E57LAL12A2E | IP67, IP69K | 79.2 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | 416.73 | |
| A | E57LAL12A2E3 | IP67 | 120 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | 351.14 | |
| A | E57LAL12A2 | - | - | 250 mA @ 250V | - | - | 0.472 mm | 0.47" | - | 395.64 |
