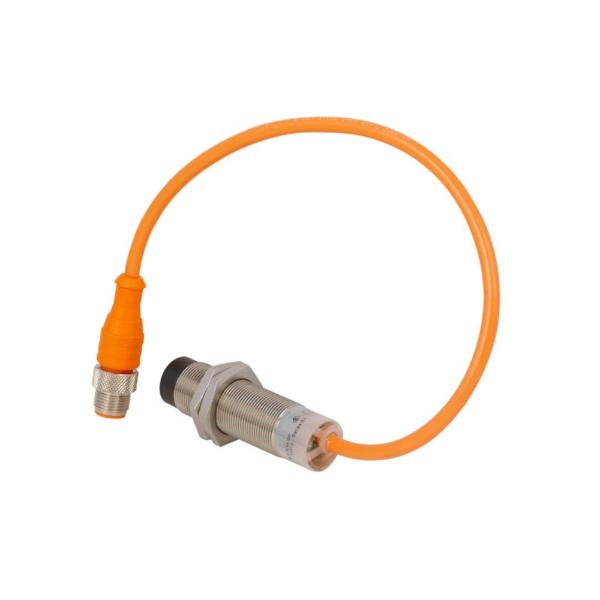

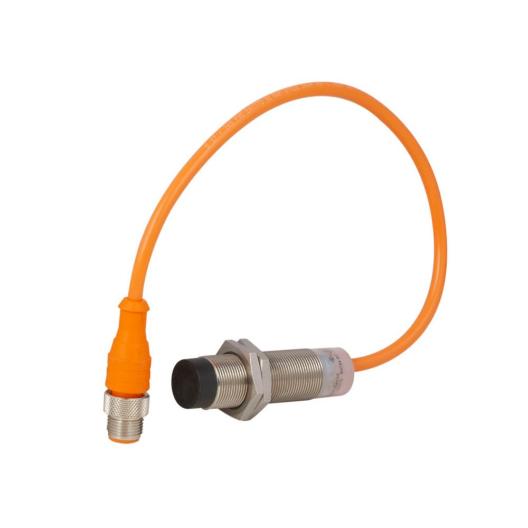

EATON E57LAL18T110EP Inductive Proximity Sensor, Dist. 8 Mm, 6 Inch Size, 48 VDC Input, Unshielded
Item: BJ3CPR
Model: E57LAL18T110EP
In Stock
Get it by Friday, Apr 17
£659.81/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Accuracy | Less Than 3% |
|---|---|
| Actuator Function | Unshielded |
| Cable Length | 8" |
| Cable Material | PVC |
| Connection | 4-pin M12 Pigtail Connector |
| Contact Configuration | NO NPN Open Collector |
| Contact Rating | 500 mA at 6-30V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.71" |
|---|---|
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 500 mA |
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 4X, NEMA 6P |
| Product Height | 2.73" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Short Circuit Protected |
| Sensor Type | Inductive Proximity |
| Warranty | 1 yr. |
Product Details
Shipping Information
| Height | 6.93 |
|---|---|
| Length | 1.8 |
| Width | 1.8 |
| Country Of Origin | US |
|---|---|
| Weight | 0.064700 |
Related Products
| Style | Model | Ip Rating | Cable Length | Contact Rating | Max. Operating Temp. | Number Of Pins | Diameter | Height | Number Of Wires | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | E57LAL12A2EP | IP67 | 8" | 250 mA at 250V AC | 158°F | - | - | - | - | 668.27 | |
| A | E57LAL12A2E4 | IP67 | 157.2 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | 304.27 | |
| B | E57LAL12A2EA | IP67, IP69K | - | 250 mA at 250V AC | 158°F | 3 | - | - | - | 401.77 | |
| B | E57LAL12A2E5 | IP67, IP69K | - | 250 mA at 250V AC | 158°F | - | - | - | - | 326.92 | |
| C | E57LAL12A2E | IP67, IP69K | 79.2 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | 354.22 | |
| A | E57LAL12A2E3 | IP67 | 120 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | 298.47 | |
| A | E57LAL12A2 | - | - | 250 mA @ 250V | - | - | 0.472 mm | 0.47" | - | 336.29 |
