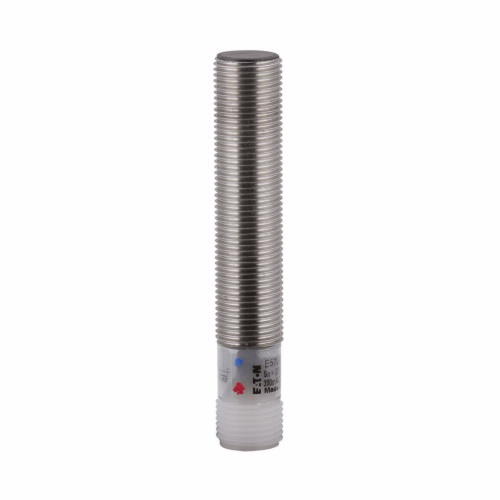

EATON E57LAL12T110SD Inductive Proximity Sensor, Straight, 500 mA At 6-30VDC, 6-48 VDC Input, Shielded
Item: BJ3CMW
Model: E57LAL12T110SD
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£652.86/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Accuracy | Less Than 1% |
|---|---|
| Actuator Function | Shielded |
| Connection | 4-pin M12 Connector |
| Contact Configuration | NO NPN Open Collector |
| Contact Rating | 500 mA at 6-30V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output Status, Red |
| Length | 0.47" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 500 mA |
|---|---|
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 4X, NEMA 6P |
| Product Height | 2.71" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.47" |
| Protection Type | Short Circuit Protected |
| Sensor Type | Inductive Proximity |
| Standard Logo | nema.png,ul.png |
| Warranty | 1 yr. |
Product Details
Proximity Sensor
Shipping Information
| height | 6.88 |
|---|---|
| length | 1.19 |
| width | 1.19 |
| country of origin | US |
|---|---|
| weight | 0.028100 |
