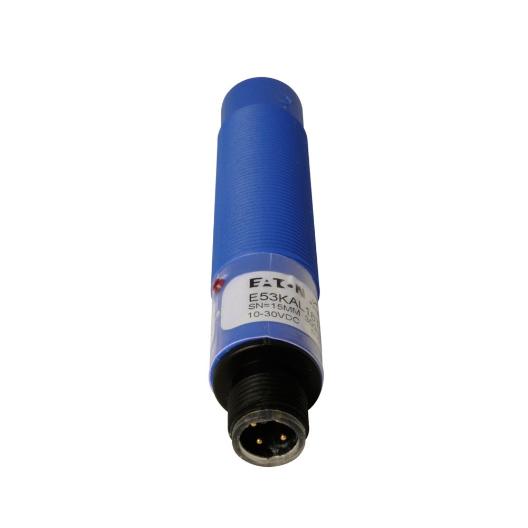

EATON E53KAL18T111ED Tubular Capacitive Proximity Sensor, Straight, 18 Mm, Unshielded
Item: BJ3BEV
Model: E53KAL18T111ED
In Stock
Get it by Wednesday, Apr 15
£886.52/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Function | Unshielded |
|---|---|
| Connection | M12 |
| Contact Configuration | NO PNP Open Collector |
| Contact Rating | 300 MA Solid State Output |
| Input Voltage | 10-30V DC |
| Ip Rating | IP65 |
| Led Indicator | Output On Output |
| Length | 3.74" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 300 mA |
| Min. Operating Temp. | -13°F |
|---|---|
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3S, NEMA 4 |
| Number Of Pins | 4 |
| Product Height | 0.71" |
| Product Name | Eaton E53 Tubular Capacitive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Short Circuit And Reverse Polarity |
| Series | E53 |
| Type | Capacitive Proximity Sensor |
| Warranty | 1 yr. |
Product Details
Proximity Sensor
Shipping Information
| height | 1.8 |
|---|---|
| length | 9.5 |
| width | 1.8 |
| country of origin | US |
|---|---|
| weight | 0.090000 |
Related Products
| Style | Model | Cable Length | Contact Rating | Number Of Pins | Ip Rating | Number Of Wires | Max. Operating Temp. | Min. Operating Temp. | Cable Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | E53KAL12T110 | 79.2 ft. | 300 mA at 30V DC | - | IP65 | - | 158°F | -13°F | PVC | 457.91 | |
| B | E53KAL12T110E | - | 300 MA Solid State Output | - | IP65 | - | 158°F | -13°F | PVC | 572.81 | |
| C | E53KAL18A2 | 79.2 ft. | 300 MA Solid State Output | - | IP65 | - | 158°F | -13°F | PVC | 664.87 | |
| D | E53KAL18A2SA | - | 300 MA Solid State Output | 3 | IP65 | - | 158°F | -13°F | - | 969.79 | |
| E | E53KAL18A2S8 | 312 ft. | 300 MA Solid State Output | - | IP65 | - | 158°F | -13°F | PVC | 1,102.96 | |
| B | E53KAL18T111 | 79.2 ft. | 300 MA Solid State Output | - | IP65 | - | 158°F | -13°F | PVC | 711.43 | |
| F | E53KAL18T110SD | - | 300 MA Solid State Output | - | IP65 | - | 158°F | -13°F | - | 620.90 |
