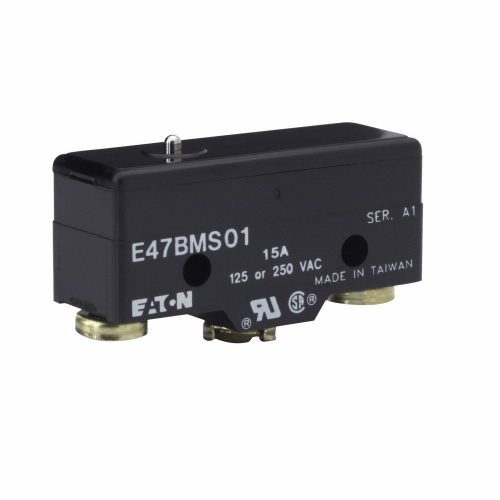

EATON E47BMS01 Limit Switch, 250 VAC, 30 VDC, 6/15A, Pin Plunger Actuator, Spdt Form C Contact, 1P
Item: BJ2ZBK
Model: E47BMS01
10 In Stock
Ships within 2 days via
5.00% off
£28.08/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Actuator Type | Pin plunger |
|---|---|
| Connection | Screw Terminal |
| Contact Configuration | 1-SPDT (form C) |
| Contact Rating | 15A At 250V AC, 6A At 30V DC |
| Enclosure Material | Phenolic |
| Height | 24/25" |
| Length | 1.94" |
| Max. Ac Amps | 15A |
| Max. Dc Amps | 15A |
| Max. Operating Temp. | 176°F |
|---|---|
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1 |
| Operating Speed | 0.01 mm/sec. to 1 mps |
| Series | E47 Series |
| Type | E47 |
| Warranty | 1 yr. |
| Width | 0.69" |
Product Details
Limit Switch
Shipping Information
| height | 2.44 |
|---|---|
| length | 4.93 |
| width | 1.75 |
| country of origin | US |
|---|---|
| weight | 0.022500 |
