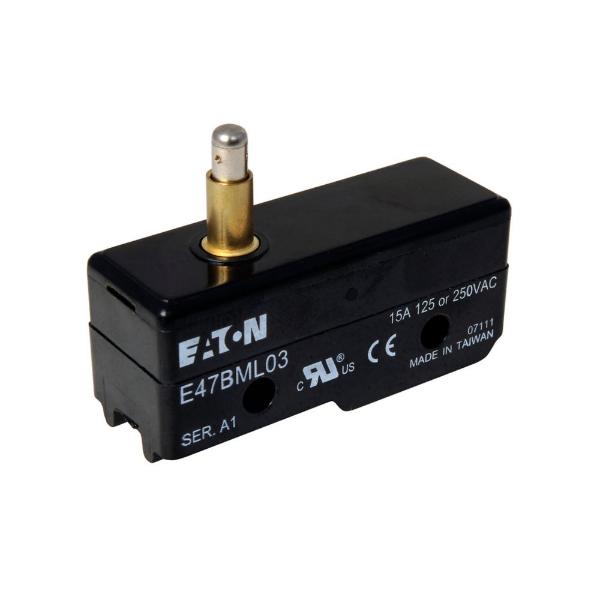

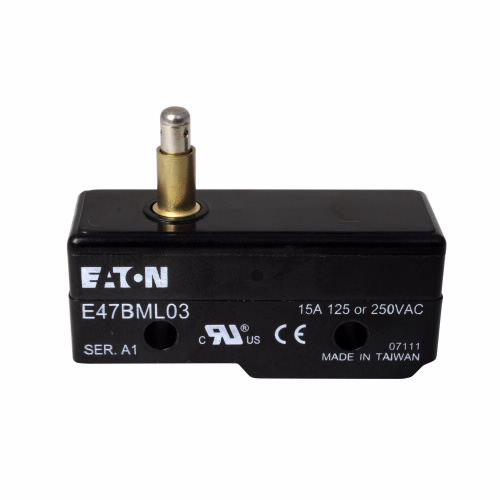

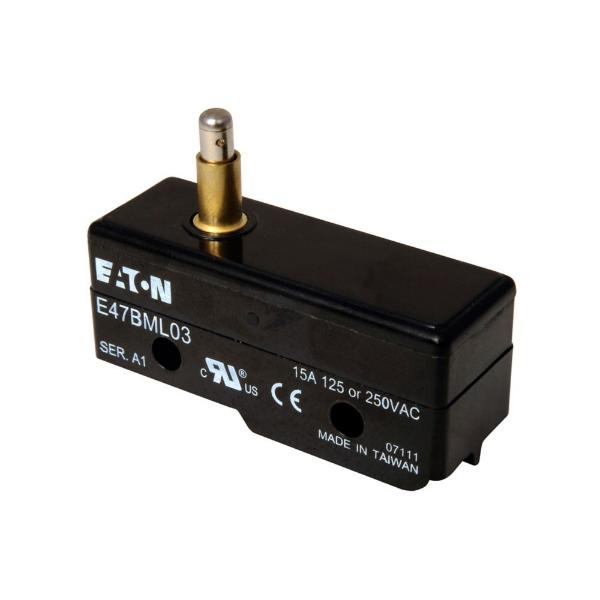

EATON E47BML03 Basic Precision Limit Switch, 15A, Extended Plunger Actuator, SPDT Form C Contact, 1P
Item: BJ2ZAQ
Model: E47BML03
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Type | Extended plunger |
|---|---|
| Connection | Solder lugs |
| Contact Configuration | 1-SPDT (form C) |
| Contact Rating | 15A At 250V AC, 6A At 30V DC |
| Enclosure Material | Phenolic |
| Height | 1.62" |
| Length | 1.94" |
| Max. Ac Amps | 15A |
| Max. Dc Amps | 15A |
| Max. Operating Temp. | 176°F |
|---|---|
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 1 |
| Operating Speed | 0.01 mm/sec. to 1 mps |
| Series | E47 Series |
| Type | E47 |
| Warranty | 1 yr. |
| Width | 0.69" |
Product Details
Limit Switch
Shipping Information
| height | 4.11 |
|---|---|
| length | 4.93 |
| width | 1.75 |
| country of origin | US |
|---|---|
| weight | 0.067500 |
