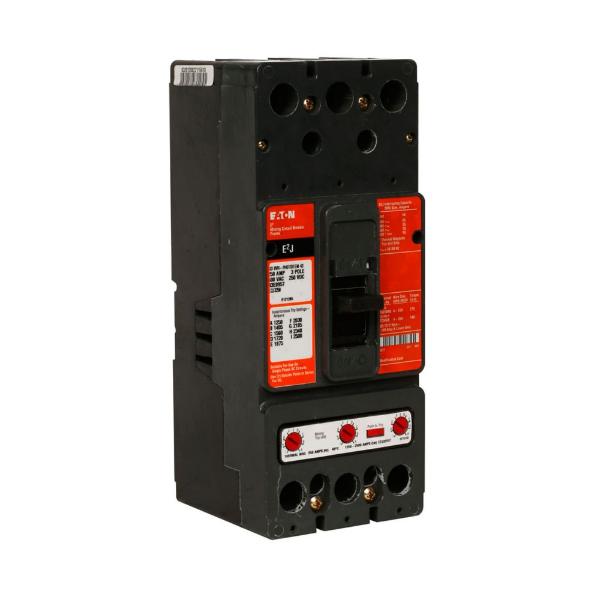

EATON E2J3150T Molded Case Circuit Breaker Trip Unit, 3P, 150A, J Frame
Item: BJ2TCL
Model: E2J3150T
In Stock
Get it by Friday, Apr 17
£1948.78/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Rating | 150A |
|---|---|
| Circuit Breaker Frame Type | Trip Unit |
| Circuit Breaker Type | E2J |
| Class | Mining |
| Frame | J |
| Height | 5 2/5" |
| Interrupt Rating | 35 KAIC at 480V AC, 65 KAIC at 240V AC, 18 KAIC at 600V AC, 10 KAIC at 250V DC |
| Length | 6.9" |
| Number Of Poles | 3 |
|---|---|
| Trip Rating | 750-1500A |
| Trip Type | Interchangeable Thermal-magnetic |
| Type | Specialty Trip Unit Only |
| Voltage Rating | 600V AC/250V DC |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 4.3" |
Product Details
Shipping Information
| Height | 13.72 |
|---|---|
| Length | 17.53 |
| Width | 10.92 |
| Country Of Origin | US |
|---|---|
| Weight | 0.562500 |
