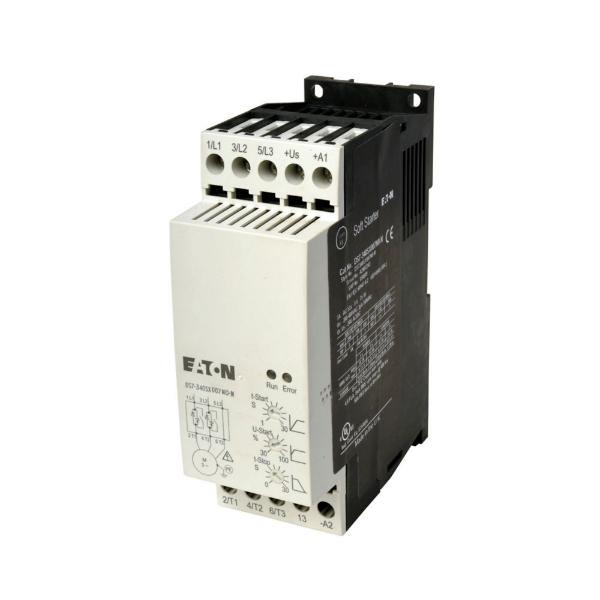

EATON DS7-340SX009N0-L Low Voltage Soft Start Controller, 24 VAC/VDC V Coil, Start/Stop Action, 3P
Item: BJ2MRM
Model: DS7-340SX009N0-L
In Stock
Get it by Wednesday, Apr 15
£1096.74/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Rating | 9A |
|---|---|
| Frame Size | FR1 |
| Height | 2 1/2" |
| Horsepower | 5 hp |
| Length | 6 1/2" |
| Options | Expanded Temperature Range Down To -40 AaC |
| Phase | 3 |
|---|---|
| Type | Standard soft starter with internal bypass |
| Voltage Rating | 480V |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 4 1/2" |
| Wiring Connection | Inline Or Inside The Delta Wiring Configuration |
Product Details
Starter Control
Shipping Information
| height | 6.35 |
|---|---|
| length | 16.51 |
| width | 11.43 |
| country of origin | US |
|---|---|
| weight | 0.360000 |
Related Products
| Style | Model | Height | Voltage Rating | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|
| A | DS6-340-45K-MX | 6.34" | - | 3,396.14 | |
| B | DS7-340SX004N0-L | 2 1/2" | 480V | 1,013.94 | |
| C | DS7-340SX012N0-L | 2 1/2" | 480V | 963.49 | |
| D | DS7-340SX016N0-L | 4.65" | 480V | 1,212.44 | |
| E | DS7-340SX024N0-L | 4.65" | 480V | 1,413.47 | |
| B | DS7-340SX007N0-L | 2 1/2" | 480V | 913.95 | |
| F | DS7-340SX081N0-N | 4" | 480V | 2,960.39 |
