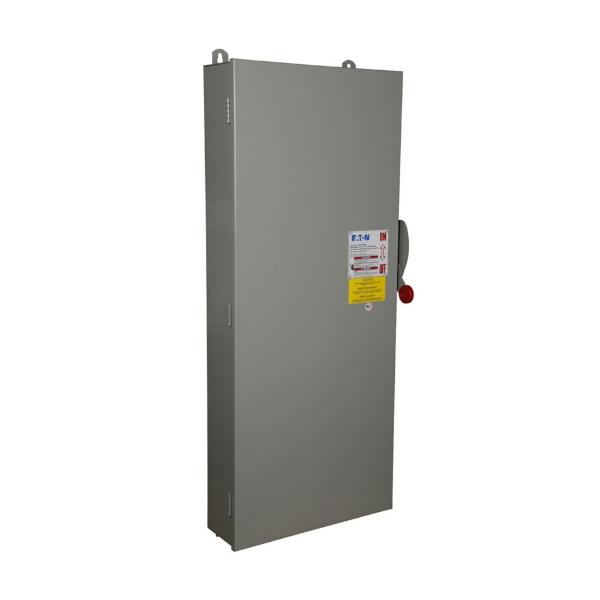

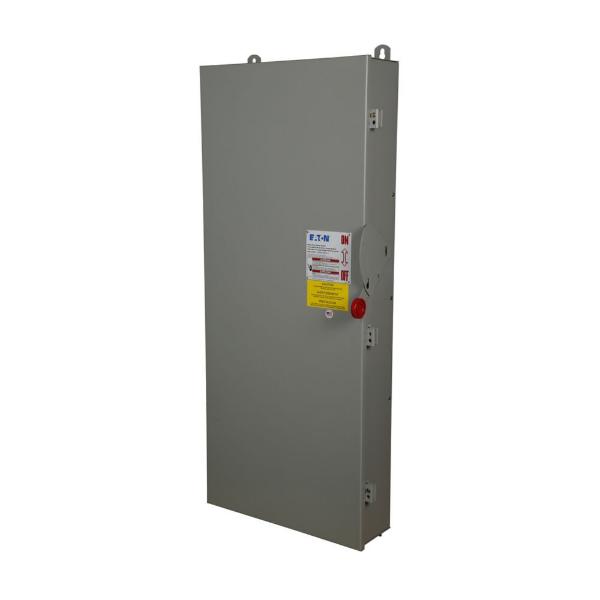

EATON DH665UWK2 Single Safety Switch, Heavy Duty, 600 VAC, 400A, 6P
Item: BJ2KZN
Model: DH665UWK2
In Stock
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps | 400A |
|---|---|
| Application | Heavy Commercial And Industrial |
| Enclosure Material | Stainless Steel |
| Fuse Class Provision | Class H |
| Fuse Configuration | Non Fusible |
| Height | 57.47" |
| Length | 11 1/5" |
| Max. Voltage | 600V |
| Nema Enclosure Rating | NEMA 4X |
| Number Of Poles | 6 |
|---|---|
| Number Of Wires | 6 |
| Series | Series K |
| Special Features | Auxiliary Contacts Factory Installed |
| Type | Single-throw |
| Voltage | 600V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 22.66" |
Product Details
Shipping Information
| Height | 145.97 |
|---|---|
| Length | 28.45 |
| Width | 57.56 |
| Country Of Origin | US |
|---|---|
| Weight | 67.500000 |
Related Products
| Style | Model | Amps | Number Of Wires | Nema Enclosure Rating | Number Of Poles | Enclosure Material | Voltage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | DH361UDK-CSA | 30A | 3 | NEMA 12 | 3 | Galvanized Steel | 600V | 1,717.59 | |
| B | DH361UGK2 | 30A | 3 | NEMA 1 | 3 | Steel | 600V | 1,349.94 | |
| B | DH361UGK-CSA | 30A | 3 | NEMA 1 | 3 | - | 600V | 1,265.01 | |
| B | DH361UGK-RS | 30A | 3 | NEMA 1 | 3 | Steel | 600V | 760.55 | |
| C | DH361URK2-SPAN | 30A | 3 | NEMA 3R | 3 | Galvanized Steel | 600V | 1,768.17 | |
| C | DH361URK2-CSA | 30A | 3 | NEMA 3R | 3 | Galvanized Steel | 600V | 2,321.83 | |
| C | DH361URK-RS-CSA | 30A | 3 | NEMA 3R | 3 | Galvanized Steel | 600V | 1,314.22 |
