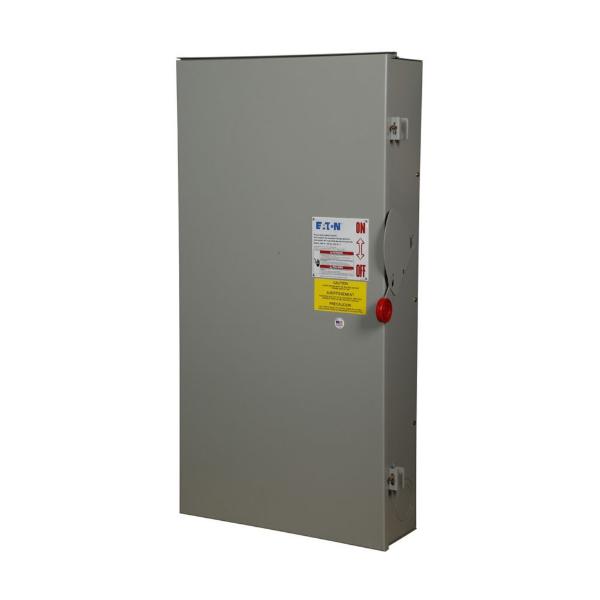

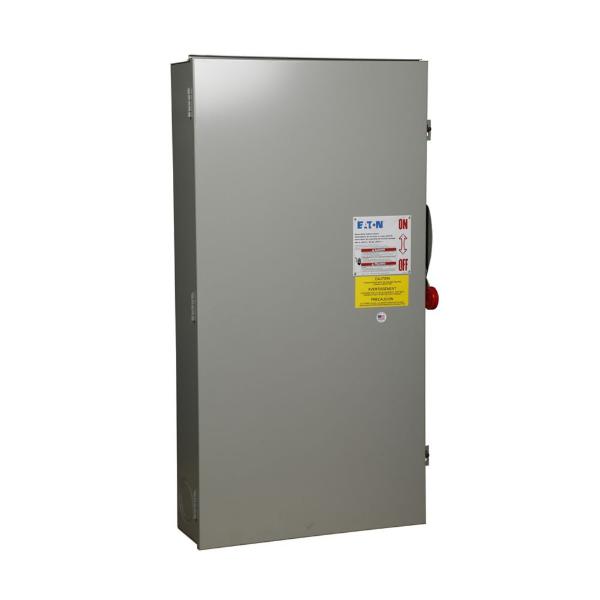

EATON DH365UWK-GCL Custom Single-Throw Non-Fused Safety Switch, Mill-Duty Rated, 400 A, Nema 4X
Item: BJ2KAG
Model: DH365UWK-GCL
In Stock
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps | 400A |
|---|---|
| Application | Heavy Commercial And Industrial |
| Enclosure Material | Stainless Steel |
| Fuse Configuration | Non Fusible |
| Height | 57.47" |
| Length | 12.43" |
| Max. Hp Rating | 250 Hp @ 480V AC TD 1 Ph, 125 Hp @ 240V AC TD 3 Ph, 250 Hp @ 480V AC TD 3 Ph, 350 Hp @ 600V AC TD 3 Ph, 50 Hp @ 250V DC |
| Max. Voltage | 600V |
| Nema Enclosure Rating | NEMA 4X |
| Notes | Suitable For Service Entrance Use. Use Outside Poles Of Three-Pole Switch For Two-Pole Applications. |
|---|---|
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Series | Series K |
| Special Features | Mill-Duty |
| Type | Mill-duty Rated |
| Voltage | 600V |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 24 3/25" |
Product Details
Shipping Information
| Height | 145.97 |
|---|---|
| Length | 31.57 |
| Width | 61.26 |
| Country Of Origin | US |
|---|---|
| Weight | 56.250000 |
Related Products
| Style | Model | Amps | Number Of Wires | Nema Enclosure Rating | Number Of Poles | Enclosure Material | Voltage | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | DH361UDK-CSA | 30A | 3 | NEMA 12 | 3 | Galvanized Steel | 600V | 1,717.59 | |
| B | DH361UGK2 | 30A | 3 | NEMA 1 | 3 | Steel | 600V | 1,349.94 | |
| B | DH361UGK-CSA | 30A | 3 | NEMA 1 | 3 | - | 600V | 1,265.01 | |
| B | DH361UGK-RS | 30A | 3 | NEMA 1 | 3 | Steel | 600V | 760.55 | |
| C | DH361URK2-SPAN | 30A | 3 | NEMA 3R | 3 | Galvanized Steel | 600V | 1,768.17 | |
| C | DH361URK2-CSA | 30A | 3 | NEMA 3R | 3 | Galvanized Steel | 600V | 2,321.83 | |
| C | DH361URK-RS-CSA | 30A | 3 | NEMA 3R | 3 | Galvanized Steel | 600V | 1,314.22 |
