EATON

See our 856 reviews on trustpilot

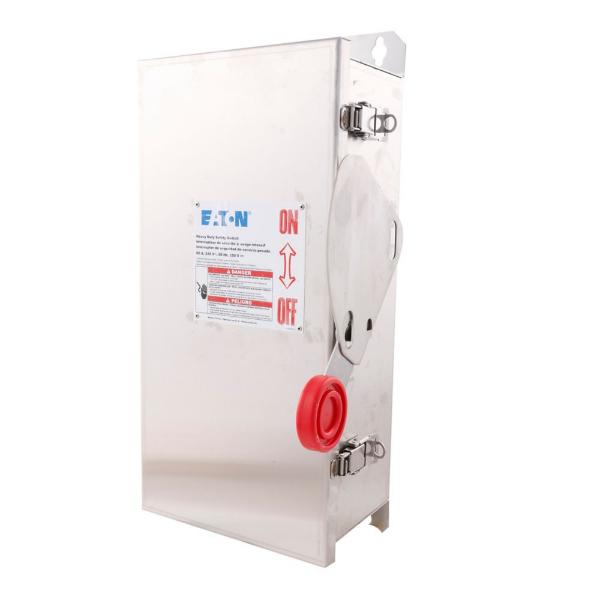

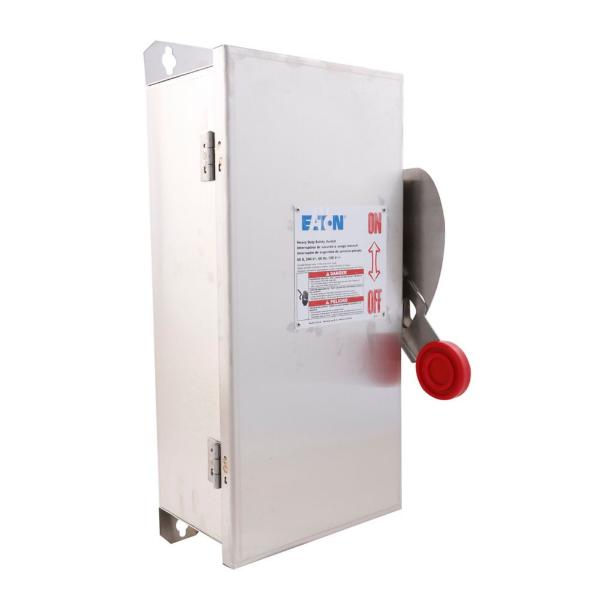

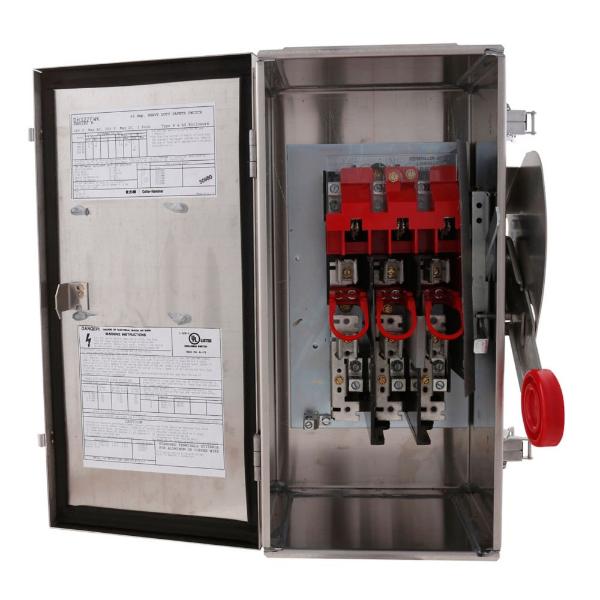

EATON DH323FCK Single Throw Safety Switch, 240 VAC, 100A, 7-1/2 hp, 15 hp, 20 hp, 30 hp, 3P

Item: BJ2HKQ
Model: DH323FCK
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Amps 100A
Enclosure Material Krydon, Non Metallic
Fuse Class Provision Class H
Fuse Configuration Fusible Without Neutral
Height 27 1/4"
Length 16.46"
Max. Hp Rating 7.5, 15/15, 30/20 Hp (1, 3PH @Std/TD/250V DC)
Nema Enclosure Rating NEMA 4X
Notes Suitable For Service Entrance Use With A Neutral Or Ground Lug Kit Installed
Number Of Poles 3
Number Of Wires 3
Special Features Corrosion Resistant
Type Heavy Duty Fusible Safety Switch
Voltage 240V
Warranty Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.
Width 14 1/4"
Wire Size #14 AWG to 1/0 AWG

Product Details

Safety Switch

Shipping Information

height 69.22
length 41.81
width 36.2
country of origin US
weight 20.250000
