EATON DH322NDK Heavy Duty Single-Throw Fused Safety Switch, 60 A, Nema 12/3R, Painted Galvanized Steel | BJ2HJZ

EATON DH322NDK Heavy Duty Single-Throw Fused Safety Switch, 60 A, Nema 12/3R, Painted Galvanized Steel | BJ2HJZ

EATON Datasheet

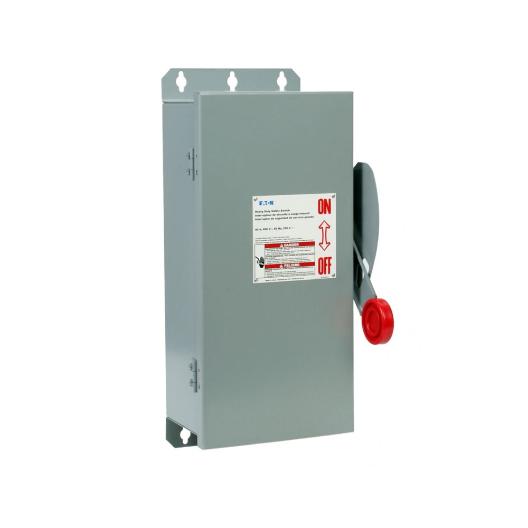

EATON DH322NDK 2

EATON DH322NDK Single Throw Safety Switch With Neutral, 240 VAC, 60A, 3 hp, 3P

Item: BJ2HJZ

Model: DH322NDK

In Stock

Get it by Friday, Apr 17

£2627.26/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Product Details
Shipping Information
See Variants

Specifications

Amps	60A
Enclosure Material	Galvanized Steel
Fuse Class Provision	Class H
Fuse Configuration	Fusible With Neutral
Height	8 1/2"
Length	20"
Max. Hp Rating	3, 7.5/10, 15/10 Hp (1, 3PH @Std/TD/250V DC)
Nema Enclosure Rating	NEMA 12, NEMA 3R

Notes	Can Be Field Modified To Meet NEMA 3R Rainproof Requirements When A Factory Provided Drain Hole Is Opened
Number Of Poles	3
Number Of Wires	4
Type	Heavy Duty Fusible Safety Switch
Voltage	240V
Warranty	Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.
Width	9 1/2"
Wire Size	#14 AWG to 2 AWG

Product Details

Shipping Information

Height	21.59
Length	50.8
Width	24.13

Country Of Origin	US
Weight	9.900000
