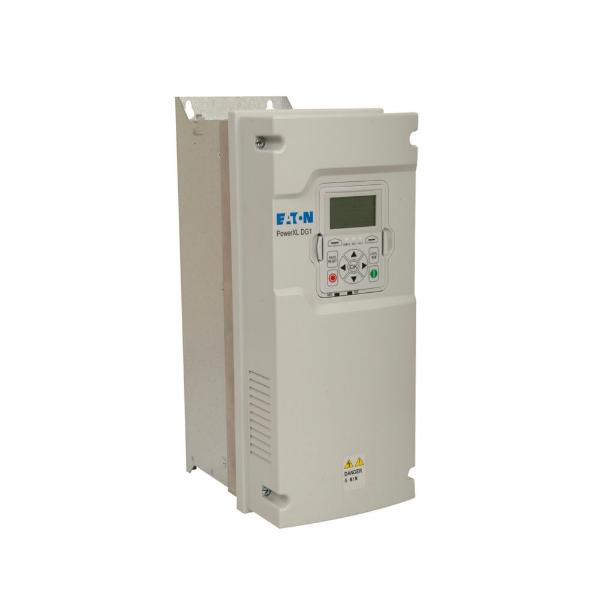

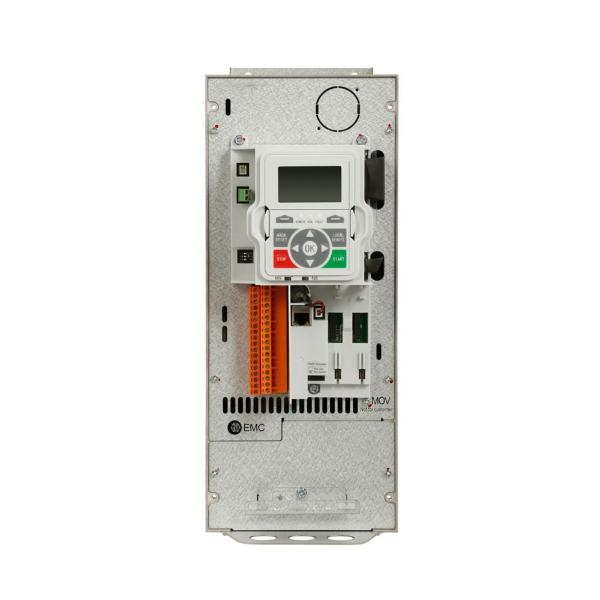

EATON DG1-34023FB-C54C Variable Frequency Drive, 23 Amp, 11 kW, 15 HP, IP54, Brake Chopper
Item: BJ2FYA
Model: DG1-34023FB-C54C
In Stock
Get it by Friday, Apr 17
£6,976.97/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amperage Rating | 23A |
|---|---|
| Brake Chopper | Brake Chopper |
| Communication | EtherNet, RS-485, BACnet MS/TP, Modbus TCP And RTU Communication |
| Depth | 21" |
| Display Type | LCD Graphical |
| Frame Size | FR3 |
| Frequency Rating | 50-60 Hz |
| Height | 14 1/5" |
| Hp | 15 hp |
| Input Phase | 3 |
| Input Voltage | 400/380-500V |
| Ip Rating | IP54 |
|---|---|
| Keypad | Included |
| Nema Enclosure Rating | NEMA 12 |
| Number Of Slots | 2 |
| Output Phase | 3 |
| Power Consumption | 11 kW |
| Protection | Dc Choke, Internal Emc Filter |
| Software | Active Energy Control, Quick Start Wizard |
| Torque Rating | CT |
| Warranty | Eaton Selling Policy 25-000 Generally Applies With Some Exceptions.Drive Products Come With A Standard 24 Months From Date Of Shipment And 36 Months With Eaton Certified Start Up All Inclusive Coverage Parts Labor And Travel. |
| Width | 10 1/4" |
Shipping Information
| Height | 36.07 |
|---|---|
| Length | 53.34 |
| Width | 26.04 |
| Country Of Origin | US |
|---|---|
| Weight | 11.938500 |
Related Products
| Style | Model | Input Voltage | Height | Depth | Hp | Input Phase | Output Phase | Phase | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | DG1-32017FB-C54C | 230/208-240V | 14.17" | 21.34" | 5 hp | 3 | 3 | - | 4,756.14 | |
| B | DG1-32011FB-C54C | 230/208-240V | 12 17/25" | 17.05" | 3 hp | 3 | 3 | - | 3,583.86 | |
| A | DG1-32012FB-C54C | 400/380-500V | 14.17" | 21.34" | 5 hp | 3 | 3 | - | 3,988.00 | |
| C | DG1-32061FB-C21C | 230/208-240V | 16.73" | 27.95" | 20 hp | 3 | 3 | - | 8,978.43 | |
| D | DG1-32031FB-C54C | 400/380-500V | 16.14" | 27 9/25" | 10 hp | 3 | 3 | - | 4,971.63 | |
| C | DG1-32061FB-C54C | 400/380-500V | 16.73" | 27.95" | 20 hp | 3 | 3 | - | 8,978.43 | |
| A | DG1-32025FB-C54C | 230/208-240V | 14" | 21.34" | 7 1/2 hp | 3 | 3 | - | 5,530.71 |
