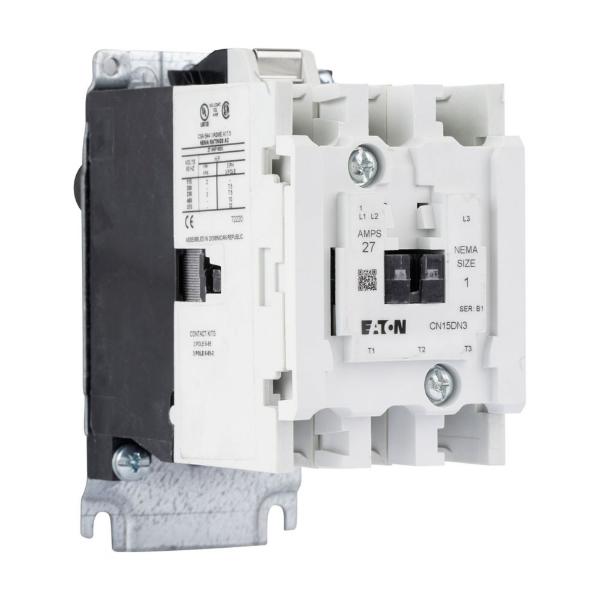

EATON CN15DN3TB NEMA Magnetic Contactor, Non-Reversing, 3 Poles, NEMA Size 1, 27 A, 24 VAC

Item: BH9ZBT
Model: CN15DN3TB
26 In Stock

Ships within 2 days via

£1373.46
5.00% off
£1304.78/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Amps Rating 27A
Auxiliary Contacts Included 1NO
Coil Voltage 24V AC
Contactor Style NEMA
Electrical Operating Durability 200000 (ac-4), 500000 (ac-3)
Embedded Surge Suppressor - New No
Frame Size D
Frequency 60 Hz
Full Load Current - Inductive 27A
Height 4"
Horsepower @ Single Phase - 120v Ac 2 hp
Horsepower @ Single Phase - 240v Ac 3 hp
Horsepower @ Three Phase - 480v Ac 10 hp
Horsepower @ Three Phase - 600v Ac 10 hp
Hp @ Three Phase - 208v Ac 7 1/2 hp
Hp @ Three Phase - 240v Ac 7 1/2 hp
Includes Auxiliary Contacts Yes
Length 4 11/25"
Main Power Pole Contact Form 3NO
Max. Hp Rating 2 hp @ 115V, 3 hp @ 230V, 7-1/2 hp @ 208, 240V, 10 hp @ 480, 600V
Maximum Operating Temperature 149°F
Maximum Voltage Rating 600V AC
Mechanical Operating Durability 10000000
Minimum Operating Temperature -4°F
Mounting Hole Diameter 1/4"
Mounting Postion Horizontal, Vertical
Mounting Style Panel
Nema Enclosure Rating No Enclosure
Nema Size 1
Nominal Coil Voltage @ 60hz 24V AC
Notes Common Control
Number Of Poles 3
Overall Depth 4.44"
Overall Height 4"
Overall Width 2 14/25"
Phase 3
Response Time 20 ms
Reversing Capability Non-reversing
Series Freedom Series
Size 1
Standard Logo csa.png,ul.png
Standards Csa, Ul Listed
Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width 2 14/25"
Wire Termination Type Screw

Product Details

Contactor

Shipping Information

height 10.16
length 11.28
width 6.5
country of origin US
weight 1.170000
