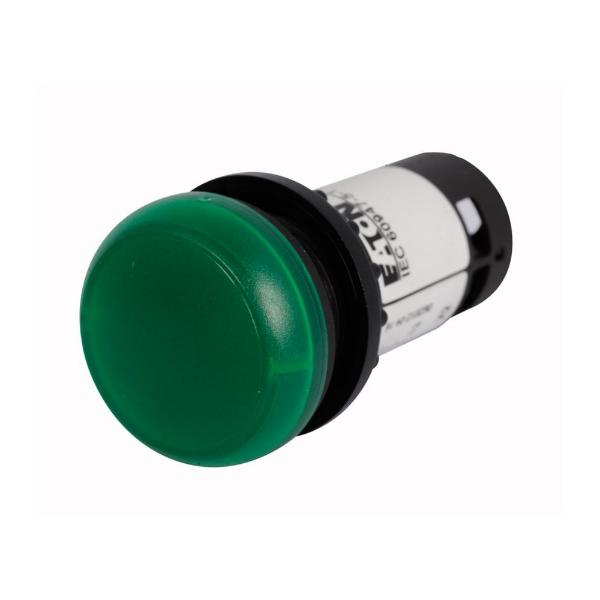

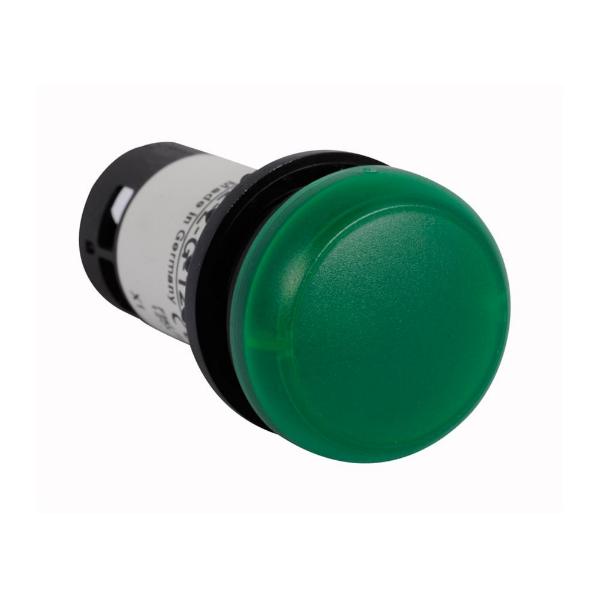

EATON C22-L-G-120 Raised Indicator Light, Green, Terminal Clamps, LED, 120 VAC, Polycarbonate
Item: BJ7VUU
Model: C22-L-G-120
19 In Stock
Ships within 2 days via
5.00% off
£91.61/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Average Life | 100000 hrs. |
|---|---|
| Basic Material | Plastic |
| Body Material | Polycarbonate |
| Current Drawn | 20 mA |
| Electrical Connection | Terminal Clamp |
| Head Color | Green |
| Head Style | Flush |
| Illumination | Illuminated |
| Includes Lamp Module - New | Yes |
| Includes Lens | Lens Included |
| Ip Rating | IP67, IP69K |
| Lamp Bulb Color | Green |
| Lamp Bulb Type | LED |
| Lamp Module Type | Full Voltage |
|---|---|
| Manufacturer Warranty Length | 18 Months |
| Nema Enclosure Rating | NEMA 4X, NEMA 13 |
| Overall Depth | 1.17" |
| Overall Height | 2 1/5" |
| Overall Width | 1.17" |
| Panel Mounting Hole Diameter | 22 mm |
| Panel Thickness | 0.93" |
| Series | C22 Series |
| Shape | Round |
| Voltage Rating - Maximum | 120V AC |
| standard | CSA, EN 60947, IEC 60947, UL LISTED |
Product Details
Indicator Light
Shipping Information
| height | 5.59 |
|---|---|
| length | 2.97 |
| width | 2.97 |
| country of origin | US |
|---|---|
| weight | 0.027000 |
