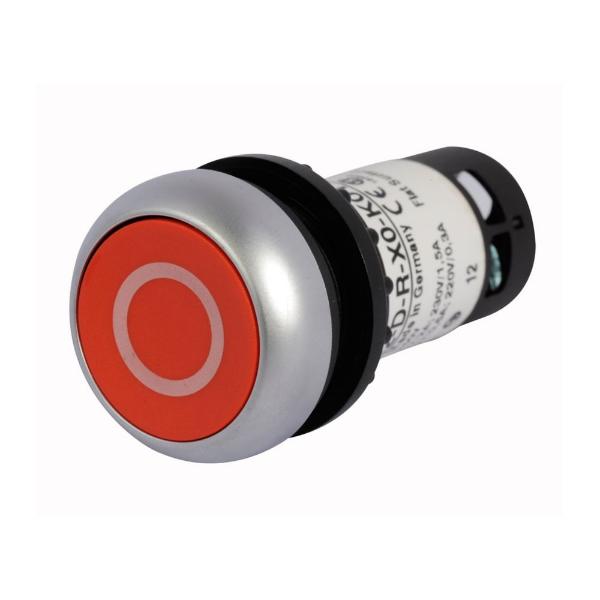

EATON C22-DR-R-X0-K02 Compact Pushbutton, 22.5 mm, Red, Silver Bezel, 2Nc, Non-Illuminated, Maintained
Item: BJ7VNK
Model: C22-DR-R-X0-K02
In Stock
Get it by Wednesday, Apr 15
£68.81/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Color | Red |
|---|---|
| Actuator Function | Maintained |
| Actuator Material | Plastic |
| Actuator Type | Flush Button |
| Bezel Color | Silver |
| Button Color | Red |
| Color | Red |
| Contact Configuration | 2 NC |
| Height | 2.15" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Legend | X0 |
|---|---|
| Length | 1.17" |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Maintained Pushbuttons Can Be Converted In The Field To Momentary Operation By Switching The Locking Ring, Which Is Accessible Through The Side Of The Operator Body. |
| Operating Cycles | 1 Million |
| Operating Mode | Maintained |
| Standard Logo | csa.png,iec.png,en.png,ul.png |
| Type | Pushbutton |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 1.17" |
Product Details
Pushbutton
Shipping Information
| height | 5.46 |
|---|---|
| length | 2.97 |
| width | 2.97 |
| country of origin | US |
|---|---|
| weight | 0.045000 |
