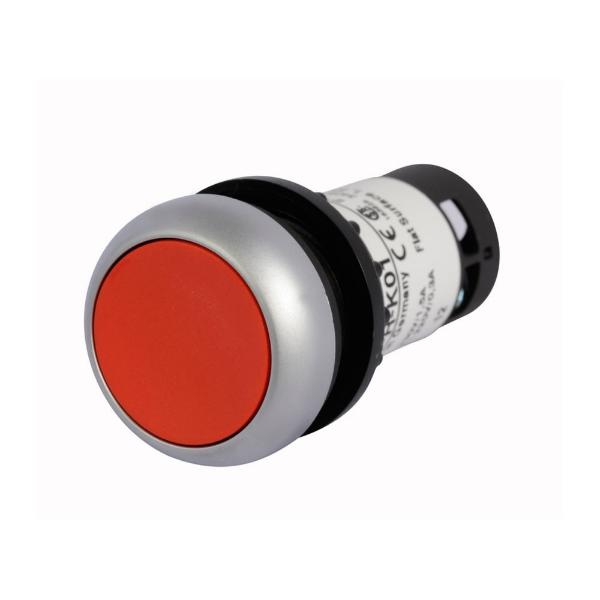

EATON C22-DR-R-K01 Non-Illuminated Pushbutton, 22.5 Mm, 1Nc Contact, Red
Item: BJ7VNE
Model: C22-DR-R-K01
In Stock
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£0/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Color | Red |
|---|---|
| Actuator Material | Plastic |
| Actuator Type | Flush Button |
| Bezel Material | Silver Nylon |
| Button Color | Red |
| Color | Red |
| Contact Configuration | 1 NC |
| Contact Form | 1NC |
| Display Qty | 1 |
| Head Material | Plastic |
| Head/lens Color | Red |
| Height | 2.15" |
| Illumination | Non-Illuminated |
| Ip Rating | IP67, IP69K |
| Length | 1.17" |
| Mounting Type | Flush |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 4X, NEMA 12, NEMA 13 |
|---|---|
| Notes | Maintained Pushbuttons Can Be Converted In The Field To Momentary Operation By Switching The Locking Ring, Which Is Accessible Through The Side Of The Operator Body. |
| Number Of Operators | 1 |
| Operating Cycles | 1 Million |
| Operating Mode | Maintained |
| Operator Material | Plastic |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Standard Logo | csa.png,iec.png,en.png,ul.png |
| Terminal Connection | Pressure Plate |
| Type | Pushbutton |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 1.17" |
| standard | CCC, CE, CSA, IEC 60947, LLOYD'S REGISTER, ROHS, UL LISTED, VDE 0660 |
Product Details
Pushbutton
Shipping Information
| height | 5.46 |
|---|---|
| length | 2.97 |
| width | 2.97 |
| country of origin | US |
|---|---|
| weight | 0.045000 |
Related Products
| Style | Model | Contact Form | Color | Bezel Material | Terminal Connection | Contact Configuration | Head Material | Ip Rating | Number Of Operators | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C22-D-G-K10 | 1NO | Green | Nylon | Screw Clamp | 1 NO | Plastic | IP67, IP69K | 1 | 46.69 | |
| B | C22-D-G-X1-K10 | 1NO | Green | Silver Nylon | Pressure Plate | 1 NO | Plastic | IP67, IP69K | 1 | - |
RFQ
|
| B | C22-DR-G-X1-K20 | 2NO | Green | Silver Nylon | Pressure Plate | 2 NO | Plastic | IP67, IP69K | 1 | - |
RFQ
|
| C | C22-DRH-R-K01 | 1NC | Red | Silver Nylon | Pressure Plate | 1 NC | Plastic | IP67, IP69K | 1 | - |
RFQ
|
| C | C22-DRH-R-K02 | 2NC | Red | Silver Nylon | Pressure Plate | 2 NC | Plastic | IP67, IP69K | 1 | - |
RFQ
|
