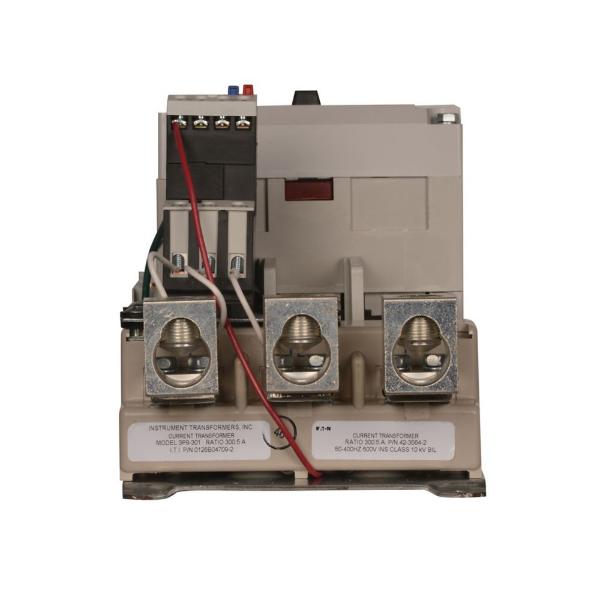

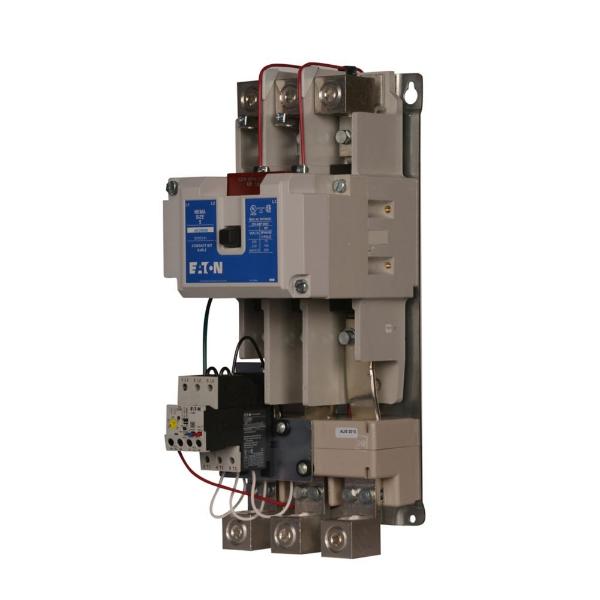

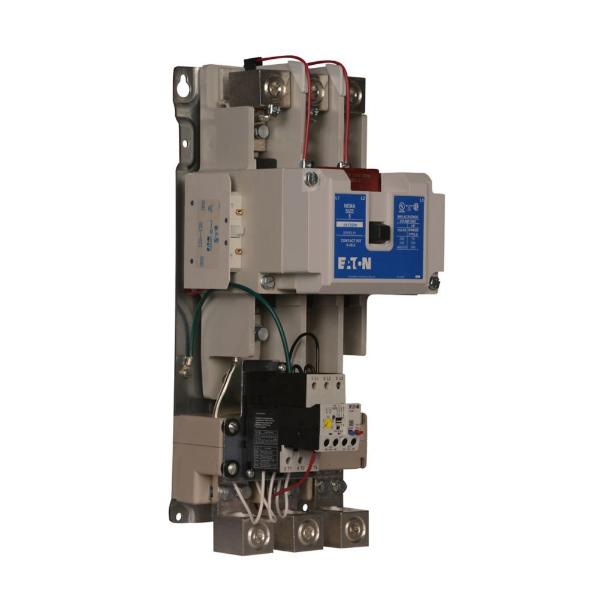

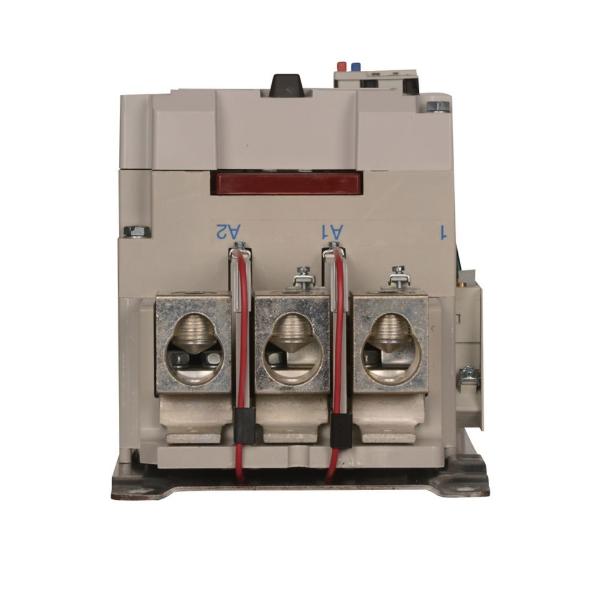

EATON AN19SN0T5G300 NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 5, 270 A, 24 VAC Coil
Item: BJ7JLB
Model: AN19SN0T5G300
26 In Stock
Ships within 2 days via
5.00% off
£15778.51/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Amps Rating | 270A |
|---|---|
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 24V AC |
| Configuration | Non Reversing |
| Frame Size | S5 |
| Frequency | 50/60 Hz |
| Height | 17.81" |
| Horsepower @ Single Phase - 120v Ac | Not Rated |
| Horsepower @ Single Phase - 240v Ac | Not Rated |
| Horsepower @ Three Phase - 208v Ac | 75 hp |
| Horsepower @ Three Phase - 240v Ac | 100 hp |
| Horsepower @ Three Phase - 480v Ac | 200 hp |
| Horsepower @ Three Phase - 600v Ac | 200 hp |
| Includes Auxiliary Contacts | Yes |
| Length | 8 2/25" |
| Max Current (ac) | 270A |
| Maximum Overload Relay Current Setting | 300A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 60A |
| Mounting | Horizontal |
| Mounting Postion | Horizontal |
| Mounting Style | Surface |
| Nema Enclosure Rating | No Enclosure |
|---|---|
| Nema Size | 5 |
| Nominal Coil Voltage @ 60hz | 24V AC |
| Number Of Poles | 3 |
| Operator | Not Available |
| Overall Depth | 8.08" |
| Overall Height | 17.81" |
| Overall Width | 7" |
| Overload Protection Type | Electronic |
| Phase | Three |
| Relay | C440 Electronic |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Size | 5 |
| Special Features | With C440 Eolr Ground Fault Feature Set, Sel Reset, Sel Class (10, 20) |
| Standards | Ce, Csa, Ul Listed |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Type | Starter |
| Warranty | 1 yr. |
| Width | 7" |
Product Details
Shipping Information
| Height | 45.24 |
|---|---|
| Length | 20.52 |
| Width | 17.78 |
| Country Of Origin | US |
|---|---|
| Weight | 0.450000 |
