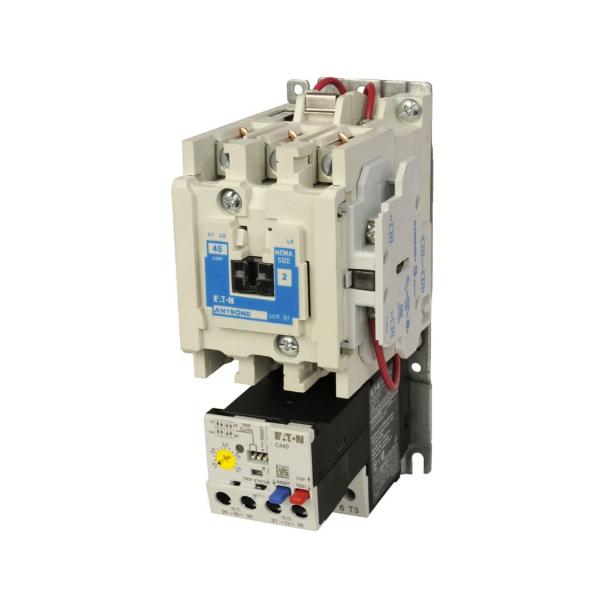

EATON AN19GN0C5E020 NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 2, 45 A, 480 VAC Coil
Item: BJ7JHM
Model: AN19GN0C5E020
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Rating | 45A |
|---|---|
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 440/480V AC |
| Configuration | Non Reversing |
| Frame Size | S2 |
| Frequency | 50/60 Hz |
| Height | 7.1" |
| Horsepower @ Single Phase - 120v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | 10 hp |
| Horsepower @ Three Phase - 240v Ac | 15 hp |
| Horsepower @ Three Phase - 480v Ac | 25 hp |
| Horsepower @ Three Phase - 600v Ac | 25 hp |
| Hp @ Single Phase - 240v Ac | 7 1/2 hp |
| Includes Auxiliary Contacts | Yes |
| Length | 4.98" |
| Max Current (ac) | 45A |
| Maximum Overload Relay Current Setting | 20A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 4A |
| Mounting | Horizontal |
| Mounting Postion | Horizontal |
| Mounting Style | Surface |
| Nema Enclosure Rating | No Enclosure |
|---|---|
| Nema Size | 2 |
| Nominal Coil Voltage @ 60hz | 480V AC |
| Number Of Poles | 3 |
| Operator | Not Available |
| Overall Depth | 4.98" |
| Overall Height | 7.1" |
| Overall Width | 2 3/5" |
| Overload Protection Type | Electronic |
| Phase | Three |
| Relay | C440 Electronic |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Size | 2 |
| Special Features | With C440 Eolr Standard Feature Set, Sel Reset, Sel Class (10A, 10, 20, 30) |
| Standard Logo | nema.png,csa.png,ce.png,ul.png |
| Standards | Ce, Csa, Ul Listed |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Warranty | 1 yr. |
| Width | 2 3/5" |
Product Details
Motor Starter
Shipping Information
| height | 18.03 |
|---|---|
| length | 12.65 |
| width | 6.6 |
| country of origin | US |
|---|---|
| weight | 1.881000 |
