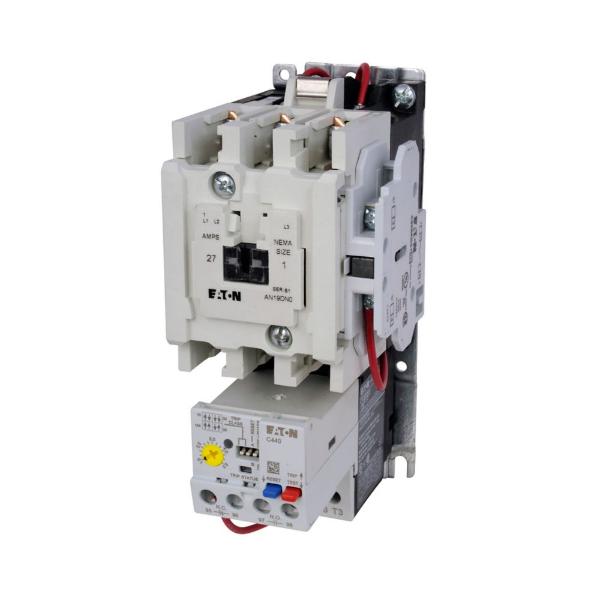

EATON AN19DN0B5E045 NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 1, 27 A, 240 VAC Coil
Item: BJ7JER
Model: AN19DN0B5E045
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Rating | 27A |
|---|---|
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 220/240V AC |
| Configuration | Non Reversing |
| Frame Size | S1 |
| Frequency | 50/60 Hz |
| Height | 7.1" |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 480v Ac | 10 hp |
| Horsepower @ Three Phase - 600v Ac | 10 hp |
| Hp @ Three Phase - 208v Ac | 7 1/2 hp |
| Hp @ Three Phase - 240v Ac | 7 1/2 hp |
| Includes Auxiliary Contacts | Yes |
| Length | 4.98" |
| Max Current (ac) | 27A |
| Max. Overload Relay Current Setting | 45A |
| Maximum Voltage Rating | 600V AC |
| Minimum Overload Relay Current Setting | 9A |
| Mounting | Horizontal |
| Mounting Postion | Horizontal |
| Mounting Style | Surface |
| Nema Enclosure Rating | No Enclosure |
| Nema Size | 1 |
|---|---|
| Nominal Coil Voltage @ 60hz | 240V AC |
| Number Of Poles | 3 |
| Operator | Not Available |
| Overall Depth | 4.98" |
| Overall Height | 7.1" |
| Overall Width | 2 3/5" |
| Overload Protection Type | Electronic |
| Phase | Three |
| Relay | C440 Electronic |
| Reversing Capability | Non-reversing |
| Series | Freedom Series |
| Size | 1 |
| Special Features | With C440 Eolr Standard Feature Set, Sel Reset, Sel Class (10A, 10, 20, 30) |
| Standard Logo | nema.png,csa.png,ce.png,ul.png |
| Standards | Ce, Csa, Ul Listed |
| Starter Style | NEMA |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Trip Class | Class 10A, Class 10, Class 20, Class 30 |
| Type | Starter |
| Warranty | 1 yr. |
| Width | 2 3/5" |
Product Details
Motor Starter
Shipping Information
| height | 18.03 |
|---|---|
| length | 12.65 |
| width | 6.6 |
| country of origin | US |
|---|---|
| weight | 1.912500 |
Related Products
| Style | Model | Nema Size | Coil Voltage | Height | Number Of Poles | Hp @ 3 Phase - 208v | Hp @ 3 Phase - 575v | Hp @ 3 Phase - 240v | Hp @ 3 Phase - 480v | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AN19AN0A5E020 | 00 | 110/120V AC | 6 3/5" | 3 | - | - | - | - | 957.06 | |
| A | AN19AN0A5E005 | 00 | 110/120V AC | 6 3/5" | 3 | - | - | - | - | 906.93 | |
| A | AN19AN0A5E1P6 | 00 | 110/120V AC | 6" | 3 | - | - | - | - | 893.27 | |
| A | AN19AN0C5E005 | 00 | 440/480V AC | 6 3/5" | 3 | - | - | - | - | 906.93 | |
| A | AN19AN0B5E1P6 | 00 | 220/240V AC | 6 3/5" | 3 | - | - | - | - | 893.27 | |
| A | AN19AN0B5E020 | 00 | 220/240V AC | 6 3/5" | 3 | - | - | - | - | 957.06 | |
| A | AN19AN0C5E020 | 00 | 440/480V AC | 6 3/5" | 3 | - | - | - | - | 957.06 |
