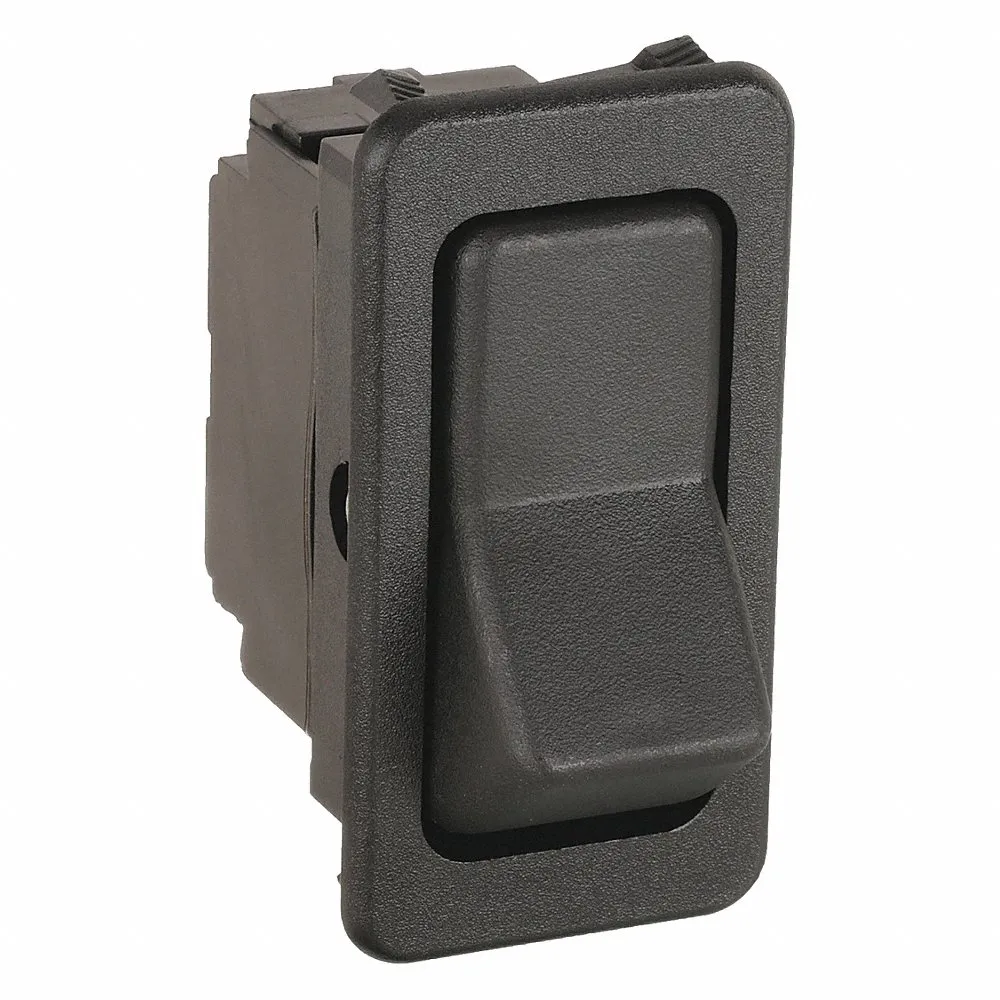

EATON 8004K23N1V2 Rocker Switch, Rocker Switch, SPST, On/Off, 2 Connections, Non-Illuminated
Item: BJ6XYU
Model: 8004K23N1V2
26 In Stock
Ships within 2 days via
5.00% off
£17.82/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Ac Contact Rating | 10A @ 250V, 15A @ 125V |
|---|---|
| Contact Form | SPST |
| Dc Contact Rating | 15A @ 28V |
| Features | Matte Finish, Slow Make/Slow Break Contacts |
| Horsepower | 3/4 hp @ 250V |
| Ip Rating | IP54 |
| Mounting Hole Length | 1.73" |
| Mounting Hole Width | 0.87" |
| Number Of Connections | 2 |
| Number Of Positions | 2 |
| Operator Illumination | Non Illuminated |
| Overall Depth | 2" |
|---|---|
| Overall Height | 1.97" |
| Overall Width | 1.02" |
| Product Type | Rocker Switch |
| Resistance Properties | Dust Resistant, Moisture Resistant |
| Series | 8004 Series |
| Special Features | Non-Illuminated |
| Switch Action | On/Off |
| Switch Color | Black |
| Terminal Connection Type | 1/4" Spade |
| standard | CRUUS, ROHS, UL E2702 |
Product Details
Rocker Switch
Shipping Information
| height | 4.07 |
|---|---|
| length | 5 |
| width | 2.6 |
| country of origin | MX |
|---|---|
| weight | 0.027000 |
Related Products
| Style | Model | Number Of Connections | Contact Form | Switch Color | Mounting Hole | Ac Contact Rating | Dc Contact Rating | Terminals | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|

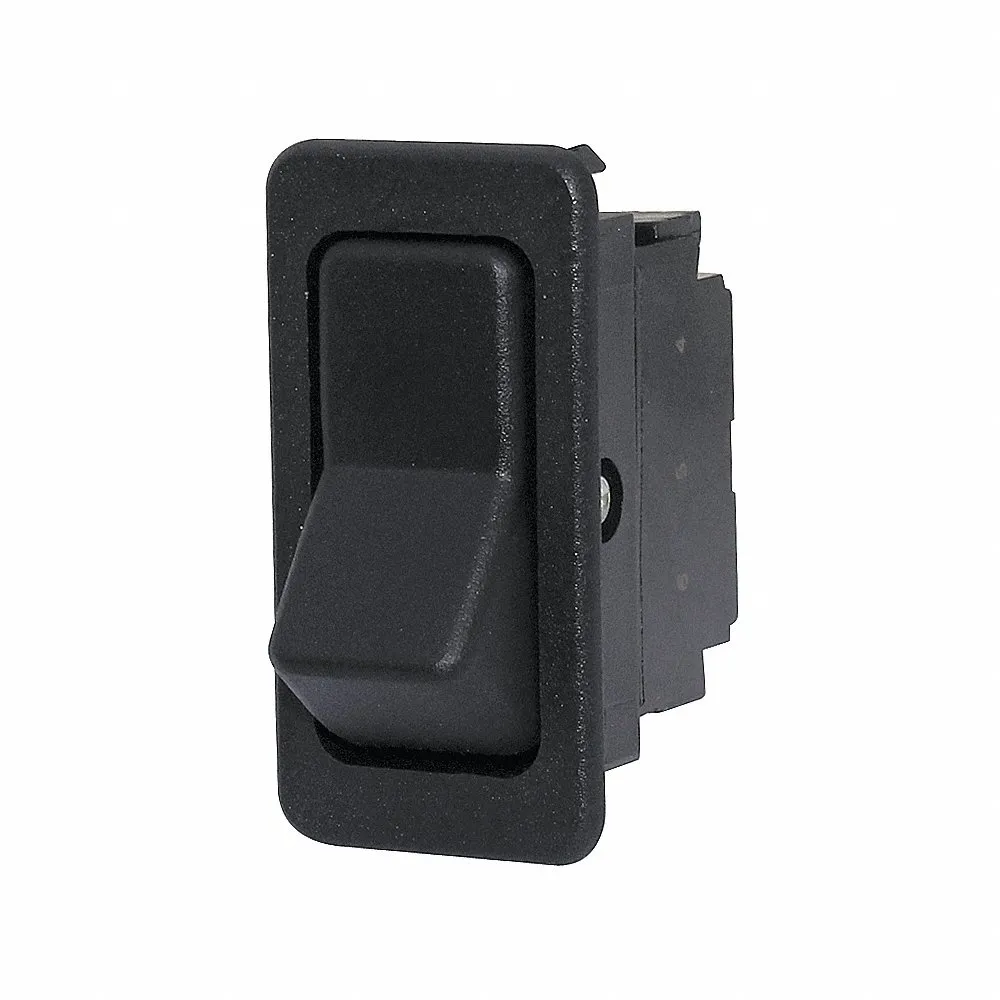

| A | 8004K20N1V2 | 3 | SPDT | Black | 0.867" x 1.734" | 10A @ 250V, 15A @ 125V | 15A @ 28V | - | 17.84 | |
| A | 8004K26N1V2 | 3 | SPDT | Black | 0.867" x 1.734" | 10A @ 250V, 15A @ 125V | 15A @ 28V | - | 16.69 | |
| A | 8004K28N1V2 | 3 | SPDT | Black | 0.867" x 1.734" | 10A @ 250V, 15A @ 125V | 15A @ 28V | Screw | 13.38 | |

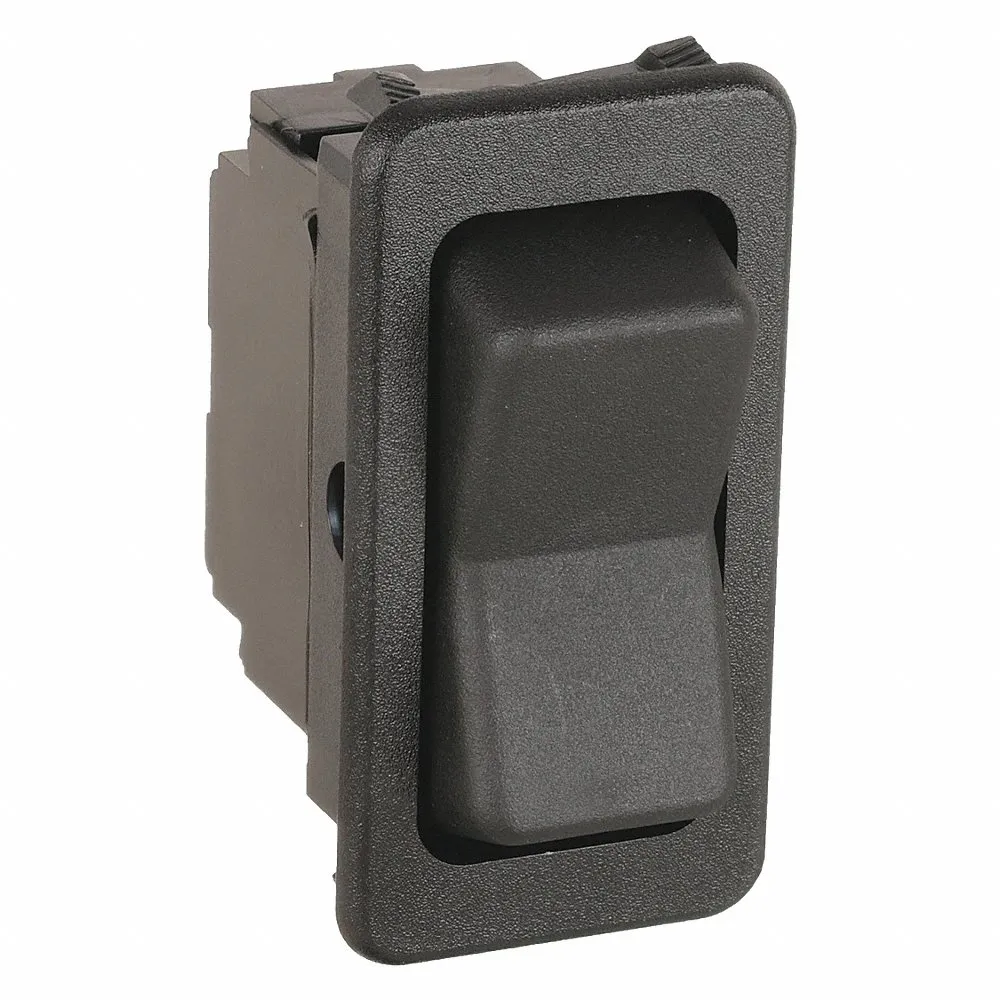

| B | 8004K32N1V2 | 3 | SPDT | Black | 0.867" x 1.734" | 10A @ 250V, 15A @ 125V | 15A @ 28V | - | 23.17 | |
| A | 8004K34N1V2 | 3 | - | - | 0.867" x 1.734" | - | - | Screw | 19.13 | |
| A | 8004K43N1V2 | 4 | DPST | Black | 0.867" x 1.734" | 10A @ 250V, 15A @ 125V | 15A @ 28V | - | 20.43 | |
| A | 8004K45N1V2 | 4 | DPST | Black | 0.867" x 1.734" | 10A @ 250V, 15A @ 125V | 15A @ 28V | Screw | 22.18 |
