EATON

See our 858 reviews on trustpilot

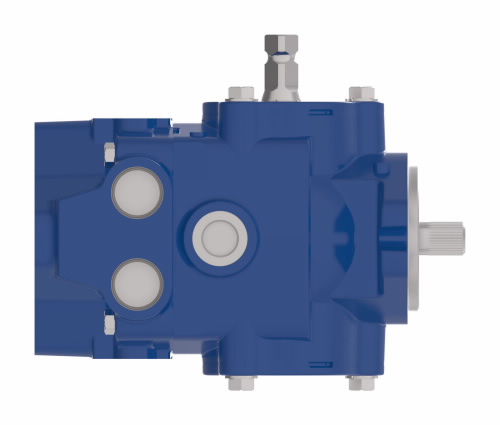

EATON 70160-RKZ-03 Pump Control System

Item: AM8RTN
Model: 70160-RKZ-03
In Stock

Get it by Thursday, Apr 16

£2905.72/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Application Mining Machinery, Dump Trucks Lift, Agriculture Tractore , Railroad Equipments Etc.
Auxiliary Port Side (c4 Or C5) (charge Pump Only) None
Auxiliary Port Top-front (c1) Or Bypass Valve None
Auxiliary Port Top-rear (c2) .750-16 Unf-2B Sae O-Ring Port Plugged
Case Drain (d1 And D2) D1-Top Plugged And D2-Bottom Plugged
Configuration Single
Control Shaft With Thru Cross Hole Diameter 6.35 [.250], Arm Diameter 17.32 [.682], 113 [4.45] From Unit Centerline To Control Shaft End
Control Shaft Location Left Side
Design Code C
Design Type None
Displacement 20.3 cc/rev.
Drive Shaft Seal Configuration Single
Flow At Rated Speed And Psi 64.3 LPM
Height 6.29"
Housing Material Cast Iron
Identification Standard
Input Shaft 13 Tooth External Spline, 16/32 Pitch, 21.806 [.8585] Major Diameter, 41.2 [1.62] Shaft Extension
Length 10 2/25"
Main Port Location A Opposite Sides
Main Port Location B Opposite Sides
Main Port Orientation Radial
Main Port(s) 1.0625-12 UN-2B SAE O-Ring Port
Max. Working Pressure 5076 psi
Maximum Input Power 42 kW
Maximum Input Torque 119 N-m
Min. Working Pressure 5076 psi
Mounting Standard
Mounting Flange Location Standard J744
Paint Red Oxide Primer Per Spec 209-13A
Rated Speed - Max 3600 RPM
Shaft Rotation Right
Special Features None
Type Variable Displacement
Unit Type Single
Valve Plate Type 1
Warranty Hydraulics Warranty
Width 8.9"

Product Details

Pump Control System

Shipping Information

height 15.98
length 25.6
width 22.61
country of origin US
weight 9.450000
