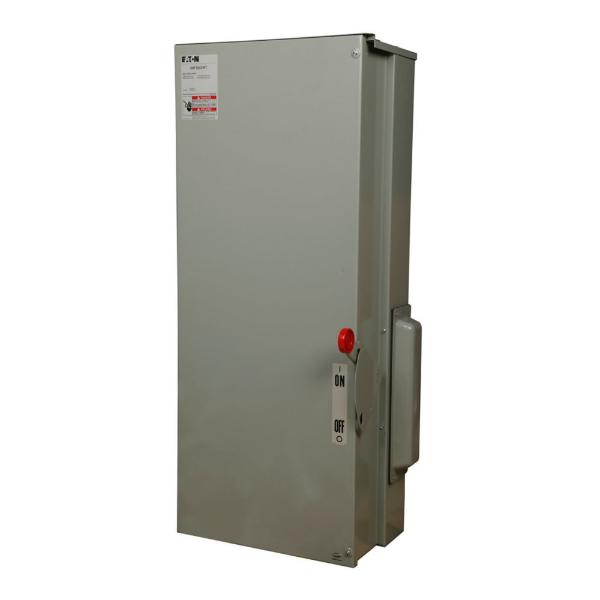

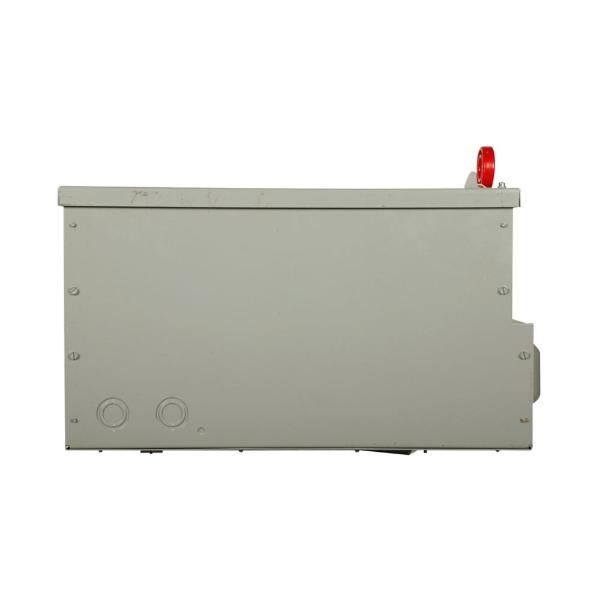

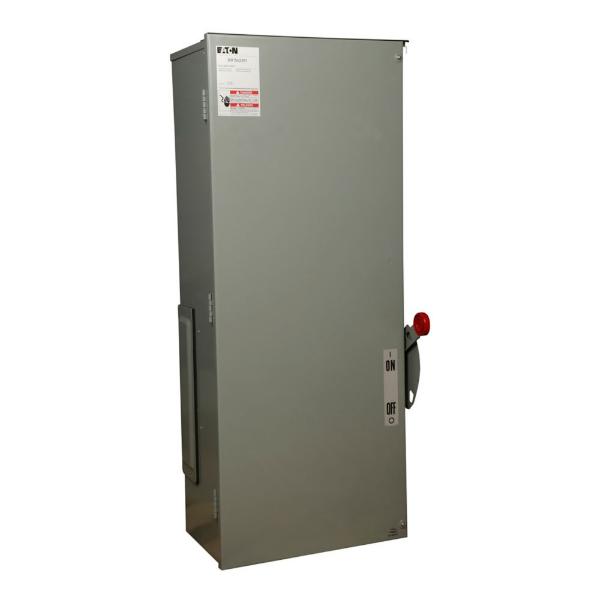

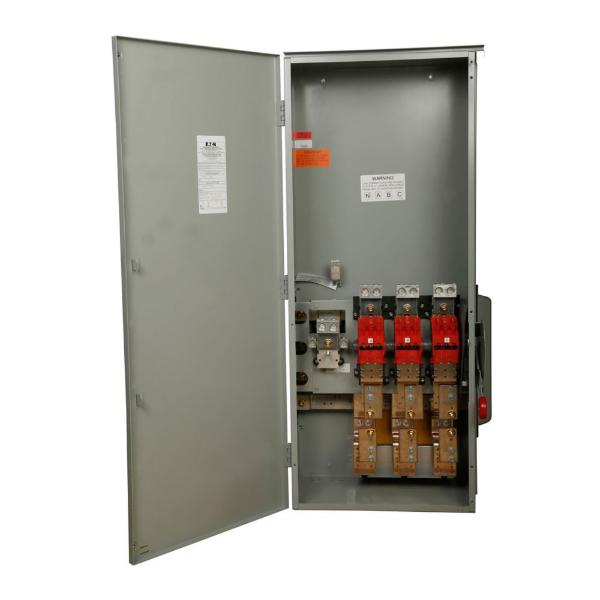

EATON 3MFS600RT Main Fusible Switch, 600A, Aluminum, Overhead, 100 Kaic, 3-Phase, 120/208V

Item: BJ6NVT
Model: 3MFS600RT
In Stock

Get it by Friday, Apr 17

£28333.55/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Amps 600A
Bus Material Aluminum
Cord Size #4 AWG to 600 kcmil
Feed Type Overhead
Fuse Clip Type Class T
Length 22.54"
Nema Enclosure Rating NEMA 3R
Notes If Class H Fuse Clips Are Needed Use Catalog Number WCG3HK400 (Order (1) Per Phase). If Class R Fuse Clips Are Needed Order Catalog Number DS56FK In Addition To WCG3HK400. In Order To Go From T To R The Device Must First Be Converted To H.
Number Of Wires 4
Phase 3
Product Height 16"
Product Name Eaton Main Fusible Switch
Product Width 16 16/25"
Used With Barrier Kits Available 400A-800A Fusible Switches, Bottom Feed-3MFSBBK, Top Feed-3MFSTB
Utility Approvals MI : DTE Energy (Detroit Edison), ID : Idaho Power, OR : Idaho Power, WA : Seattle City Light, AK : Anchorage Municipal Light & Power, NV : NV Energy, CA : City of Los Angeles - DWP (LADWP), AZ : Southern California Edison, CA : Southern California Edison, CA : Sacramento Municipal Utility District (SMUD), WA : Puget Sound Energy, WA : Tacoma Public Utilities
Voltage 120/208V
Warranty Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.

Product Details

Shipping Information

Height 40.64
Length 57.25
Width 42.27
Country Of Origin US
Weight 49.500000
