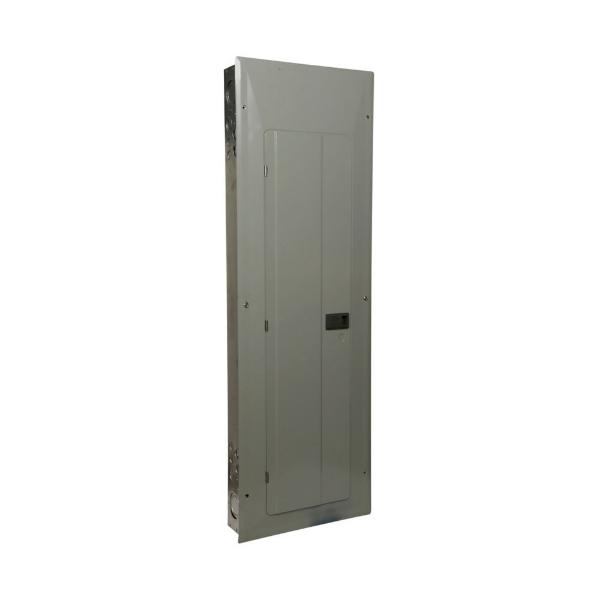

EATON 3BR4242B200S Main Circuit Breaker Load Centre, 3-Phase, 208Y/120/240VAC, 200 42P, 25 kA Interrupt
Item: BJ6NEG
Model: 3BR4242B200S
In Stock
Get it by Friday, Apr 17
£5851.74/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Rating | 200A |
|---|---|
| Box Size | L2 |
| Bus Material | Aluminum |
| Cover | Cover Included |
| Enclosure Material | Metal |
| For Use With | Type Br 1-Inch Breakers |
| Height | 39" |
| Interrupt Rating | 25 Kaic |
| Length | 3 22/25" |
| Main Circuit Breaker | BWH |
| Mounting | Surface |
| Nema Enclosure Rating | NEMA 1 |
| No. Of Wires | 4 |
|---|---|
| Notes | Listed For Use As Service Entrance Equipment And Shipped With A Neutral Bonding Strap Preattached, The Maximum Rating Of The Panel Is The Main Breaker Rating When Used As Service Entrance Equipment |
| Number Of Circuits | 42 |
| Number Of Spaces | 42 |
| Phase | 3 |
| Special Features | No Feed-Thru Lugs |
| Type | Main Circuit Breaker |
| Voltage Rating | 120/208/240V |
| Warranty | 10 yrs. |
| Width | 14.31" |
| Wire Size | #1 AWG to 250 kcmil |
Product Details
Shipping Information
| Height | 99.06 |
|---|---|
| Length | 9.86 |
| Width | 36.35 |
| Country Of Origin | US |
|---|---|
| Weight | 10.350000 |
