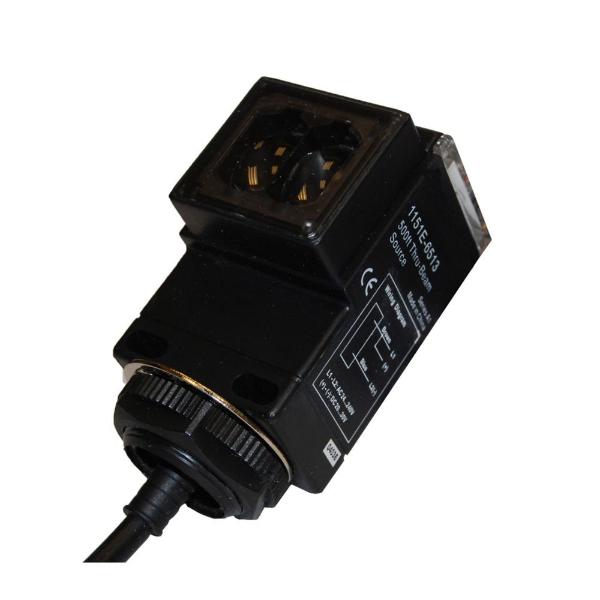

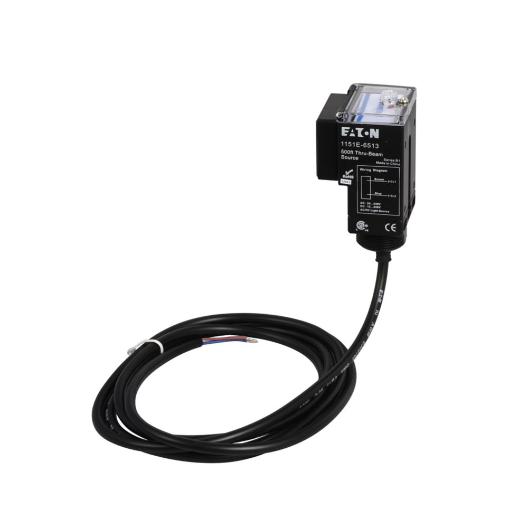

EATON 1151E-6513 Photoelectric Sensor, 24 to 240 VAC/12 to 240 VDC, 2m Cable, Selectable Light On/Dark On
Item: BJ6AQG
Model: 1151E-6513
9 In Stock
Ships within 2 days via
5.00% off
£345.92/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Ac Supply Voltage Rating | 24-240V AC |
|---|---|
| Body Material | Plastic |
| Cable Sheath Material | PVC |
| Cord Length | 79.2 ft. |
| Dc Supply Voltage Rating | 12-240V DC |
| Display Qty | 1 |
| Electrical Connection | Bare Wire |
| Electrical Installation Type | Prewired Cable |
| Emitted Sensor Light | Infrared |
| Enclosure Material | Fiberglass Reinforced Plastic |
| Features | Output Short Circuit Protection, Overcurrent Protection, Reverse Polarity Protection |
| Height | 1.81" |
| Includes Indicator Lights | Indicator Lights Included |
| Input Voltage | 24-240V AC/12-240V DC |
| Ip Rating | IP67, IP69K |
| Led Indicator | Output, Green Power, Yellow Alignment, Red |
| Length | 3.46" |
| Max. Operating Temp. | 131°F |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 6 |
| Operating Temperature - Min | -13°F |
| Output Circuit | N/A For Transmitters |
| Overall Depth | 88 mm |
| Overall Height | 46 mm |
|---|---|
| Overall Width | 49 mm |
| Product Name | Eaton Enhanced 50 Photoelectric Sensor |
| Response Time | 2 ms |
| Sensing Distance - Maximum | 152m |
| Sensing Distance - Minimum | 30 mm |
| Sensing Method | Through Beam |
| Sensor Body Style | Rectangular |
| Sensor Cable Length | 2m |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Sensor Type | Through Beam |
| Series | Enhanced 50 |
| Standards | Ce, Csa |
| Supply Voltage | 24-240V AC/12-240V DC |
| Supply Voltage Type | Ac, Dc |
| Switching Frequency | 250 Hz |
| Through Beam Sensor Component | Photoelectric Sensor Transmitter |
| Type | Photoelectric Sensor |
| Warranty | 3 yrs. |
| Width | 1.91" |
Product Details
Shipping Information
| Height | 4.6 |
|---|---|
| Length | 8.79 |
| Width | 4.85 |
| Country Of Origin | US |
|---|---|
| Weight | 0.225000 |
Related Products
| Style | Model | Sensing Method | Response Time | Operating Mode | Ip Rating | Body Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|
| A | 1151E-6517 | Through Beam | 2 ms | Thru Beam | IP67, IP69K | Plastic | 286.06 | |
| A | 1151E-6534 | Through Beam | 15 ms | Thru Beam | IP67, IP69K | Plastic | 241.46 | |
| A | 1151E-6543 | Through Beam | 2 ms | - | IP67, IP69K | Plastic | 284.52 | |
| A | 1151E-6547 | Through Beam | 2 ms | - | IP67, IP69K | Plastic | 251.60 | |
| A | 1251E-6514 | Through Beam | 15 ms | - | IP67, IP69K | Plastic | 305.91 | |
| A | 1251E-6513 | Through Beam | 2 ms | - | IP67, IP69K | Plastic | 276.26 | |
| A | 1251E-6517 | Through Beam | 2 ms | Thru Beam | IP67, IP69K | Plastic | 264.92 |
