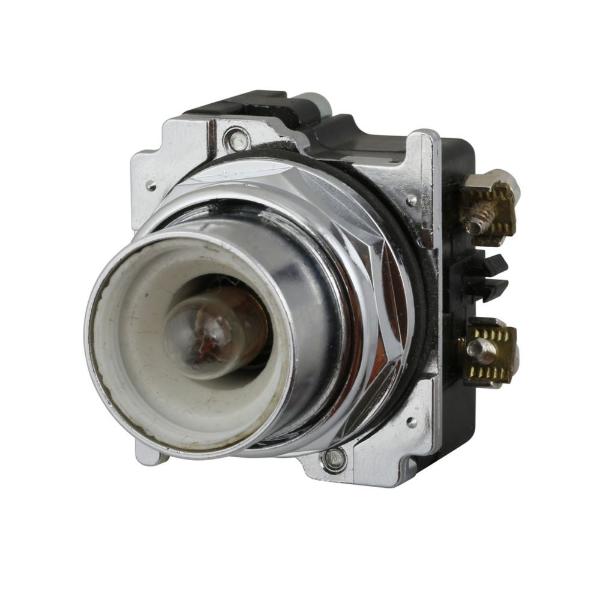

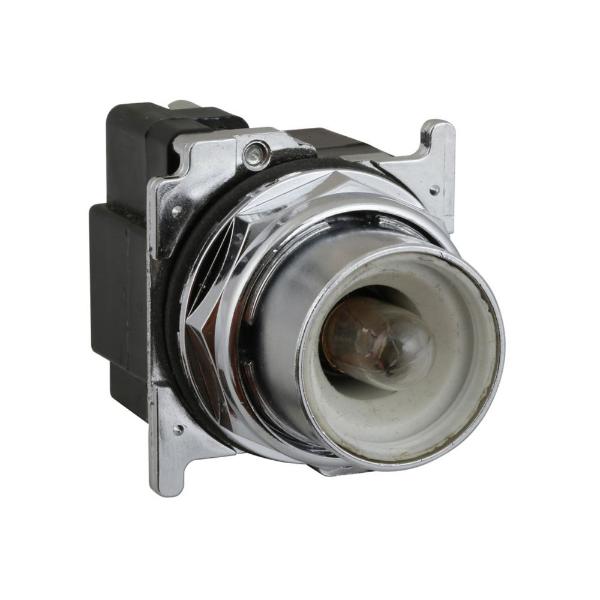

EATON 10250T416C22-1 Pushbutton, 30.5 Mm, Heavy-Duty, Illuminated, Green Actuator, 1No-1Nc, 24 Vac Light Unit
Item: BJ4WAD
Model: 10250T416C22-1
In Stock
Get it by Friday, Apr 17
£599.34/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Color | Green |
|---|---|
| Actuator Material | Plastic |
| Actuator Type | Extended |
| Bezel | Chrome |
| Contact Configuration | 1 NC, 1 NO |
| Height | 1 3/4" |
| Illumination | Illuminated |
| Lamp Module Type | Incandescent, Transformer |
| Length | 2 1/2" |
|---|---|
| Light Unit Voltage | 24V AC |
| Mfr. Series | Series 10250T |
| Nema Enclosure Rating | NEMA 4X NEMA 4 NEMA 12 NEMA 3 NEMA 13 NEMA 3R |
| Operating Mode | Momentary |
| Type | 30.5 mm, Heavy-Duty |
| Warranty | 1 yr. |
| Width | 2.38" |
Product Details
Shipping Information
| Height | 4.44 |
|---|---|
| Length | 6.35 |
| Width | 6.05 |
| Country Of Origin | US |
|---|---|
| Weight | 0.004500 |
