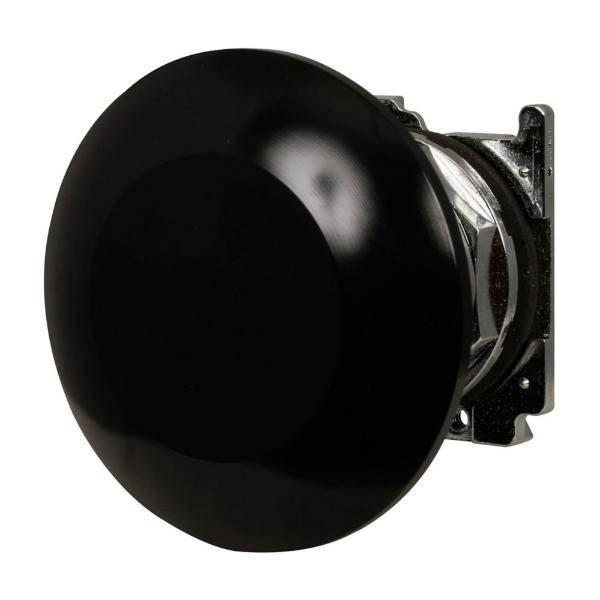

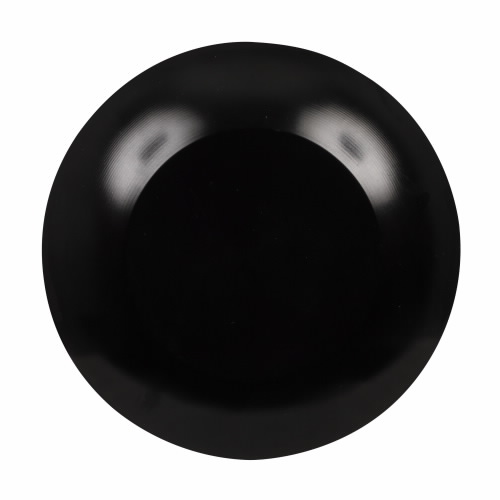

EATON 10250T171 Push Button Operator, 30mm Size, Momentary Push, Black, 65mm Mushroom Head
Item: BJ4TUM
Model: 10250T171
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹402.510000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Action | Momentary |
|---|---|
| Actuator Color | Black |
| Actuator Material | Plastic |
| Basic Material | Metal |
| Bezel Material | Zinc Die Cast |
| Bus Material | Zinc Die Cast |
| Features | Drainage Holes, Grounding Nibs, One Piece Body |
| Hazardous Location Specification | Class I, Div 2, Group B, C, D |
| Head Material | Plastic |
| Head/lens Color | Black |
| Ip Rating | IP65 |
| Legend | No Legend |
| Manufacturer Warranty Length | 1 yr. |
| Mushroom Head Diameter | 65 mm |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Number Of Push Buttons | 1 |
|---|---|
| Operating Mode | Momentary |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | 1°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polymer |
| Overall Depth | 2.4" |
| Overall Height | 3 1/5" |
| Overall Width | 2.1" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Height | 3 1/5" |
| Product Type | Push Button Operators |
| Product Width | 2.1" |
| Push Button Style | Mushroom Head |
| Series | 10250T Series |
| Standards | Csa, Ul Listed |
| Terminal Connection | Screw Clamp |
Product Details
Pushbutton
Shipping Information
| height | 8.13 |
|---|---|
| length | 6.1 |
| width | 5.33 |
| country of origin | US |
|---|---|
| weight | 0.157500 |
