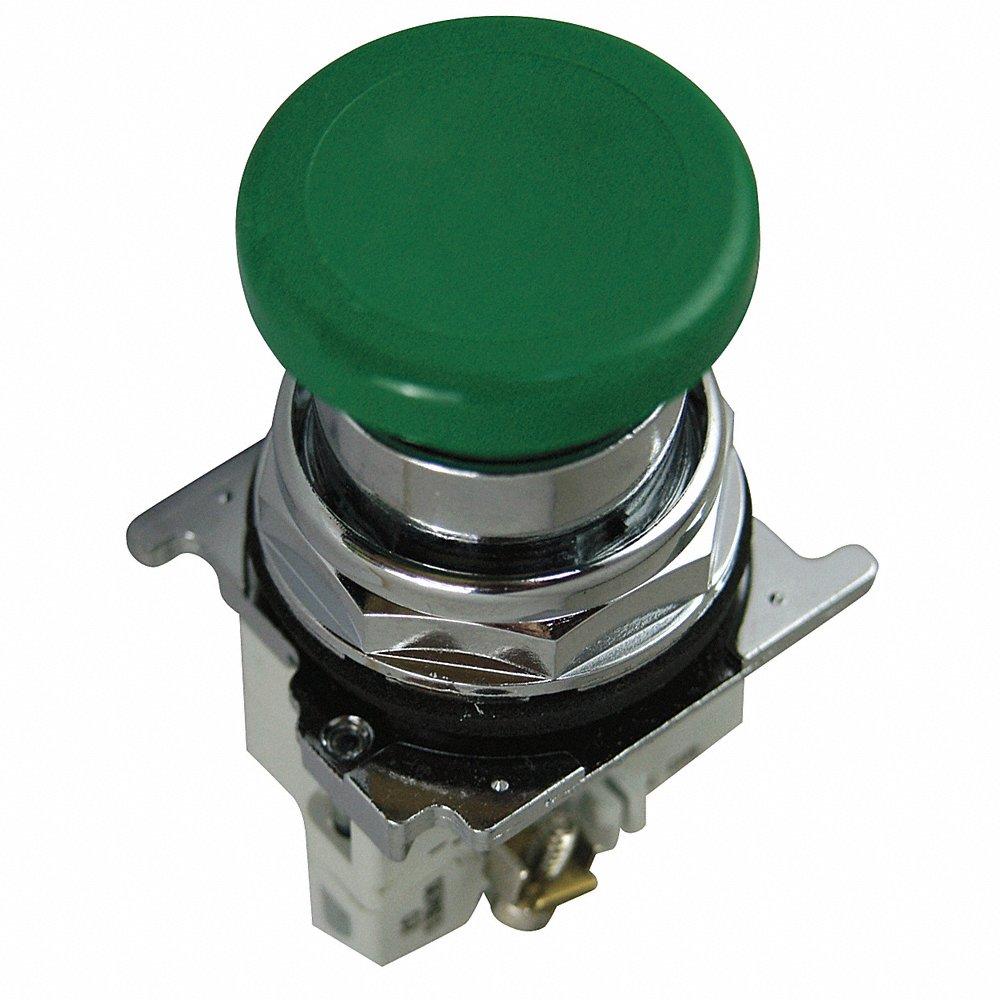

EATON 10250T123-51 Non-Illuminated Push Button, 30mm Size, Momentary Push, Green, 1NC, Metal
Item: CJ2XJE
Model: 10250T123-51
24 In Stock
Ships within 2 days via
5.00% off
£306.53/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Ac Contact Rating | 10A @ 600V |
|---|---|
| Action | Momentary |
| Bezel Material | Chrome Plated Zinc Die Cast |
| Contact Form | 1NC |
| Dc Contact Rating | 5A @ 250V |
| Display Qty | 1 |
| Features | Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs |
| Head Material | Metal |
| Head/lens Color | Green |
| Ip Rating | IP65 |
| Manufacturer Warranty Length | 1 yr. |
| Mechanical Operating Durability | 1 x 10^7 |
| Mushroom Head Diameter | 40 mm |
| Nema Enclosure Rating | NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Number Of Indicator Lights | 0 |
|---|---|
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | 1°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 120V AC/DC |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Oil And Grease Resistant, Watertight |
| Series | 10250T Series |
| Terminal Connection | Screw Clamp |
| standard | CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 NO.14, CSA LR68551, ROHS, UL 131568, UL 508 |
Product Details
Non-Illuminated Push Button
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.135000 |
Related Products
| Style | Model | Contact Form | Size | Bezel Material | Contact Configuration | Type | Legend | Diameter | Head Material | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 10250T101-2 | 2NO | 30.5 mm | Chrome Plated Zinc Die Cast | 2 NO | Class I Division 2 | - | - | Metal | 230.86 | |
| A | 10250T101-3 | 2NC | - | Chrome Plated Zinc Die Cast | 2 NC | Pushbutton | - | - | Metal | 208.60 | |
| A | 10250T101-51 | 1NC | 30.5 mm | Chrome Plated Zinc Die Cast | 1 NC | Class I Division 2 | - | - | Metal | 167.40 | |
| B | 10250T102-2 | 2NO | - | Chrome Plated Zinc Die Cast | 2 NO | Pushbutton | - | - | Metal | 230.86 | |
| C | 10250T102-51 | 1NC | 30.5 mm | Chrome Plated Zinc Die Cast | 1 NC | Class I Division 2 | - | - | Metal | 167.40 | |
| B | 10250T102-3 | 2NC | - | Chrome Plated Zinc Die Cast | 2 NC | Pushbutton | - | - | Metal | 230.86 | |
| D | 10250T103-3 | 2NC | 30.5 mm | Chrome Plated Zinc Die Cast | 2 NC | Class I Division 2 | - | - | Metal | 230.86 |
