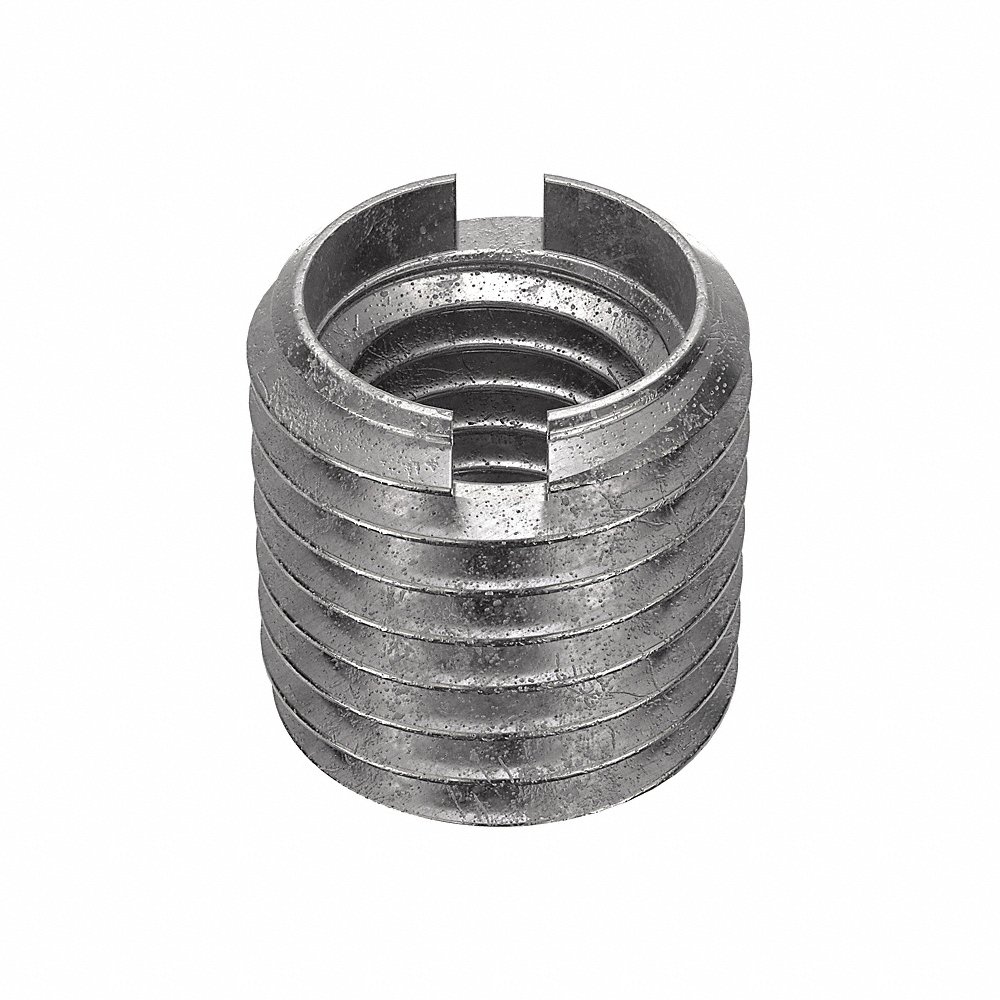

E-Z LOK 453-12 Self Locking Thread Insert, 17mm Length, 303 Stainless Steel, 14mm Drill Size | CG6NAK 4ZE44

E-Z LOK 453-12-PK5 Thread Insert, M12x1.75 Int. Thread Size, M16x2 Ext. Thread Size, 17 mm Lg., SS, 5PK

Item: CG6NAK

Model: 453-12-PK5

29 In Stock

Ships within 2 days via

~~£57.36~~

5.00% off

£54.49/pkg. of 5 (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Specifications
Product Details
Shipping Information
See Variants

Specifications

Item	Thread Insert
Brinell Hardness	160
Compatible Material	Metal
Compatible Tap Size	M16 x 2
Compatible With Grainger Part Number	4ZE57
Display Qty	5
Drill Size	14 mm
External Class	Class 6G
External Thread Fit	6G
External Thread Size	M16 x 2
Features	Pre Applied Adhesive Activates On Installation, Vibration Resistant
Finish	Plain
Full Cure Time	72 hrs.
Grade	Grade 303
Hardness	Rockwell Brinell 160
Insert Diameter	16 mm

Installation Method	Bolt And Jam Nut, Drive Tool, Screwdriver
Internal Class	Class 6H
Internal Thread Fit	6H
Internal Thread Size	M12 x 1.75
Length	17 mm
Material	Stainless Steel
Material Grade/class	18-8
Maximum Hole Diameter	14 mm
Min. Full Thread Depth	3/4"
Minimum Installation Depth	19.05 mm
Overall Length	17 mm
Power Driver	4ZE57
System Of Measurement	Metric
Tensile Strength	89900 psi
Thread Type	Metric
Wall Type	Heavy Wall

Product Details

Shipping Information

Height	2.54
Length	2.54
Width	2.54

Country Of Origin	US
Weight	0.040500

Related Products

A

B

C

D

E

F

G

Style	Model	Internal Thread Size	External Thread Size	Min. Full Thread Depth	External Class	Internal Class	Thread Type	Power Driver	Wall Type	Price (ex. VAT)	Cart
A	303-004-PK10	#4-40	#10-32	9/32"	Class 2A	Class 2B	Coarse	-	Heavy Wall	43.02
B	303-006-PK5	#6-32	1/4"-20	11/32"	Class 2A	Class 2B	Coarse	4ZE51	Heavy Wall	24.28
C	303-008-PK5	#8-32	5/16"-18	7/16"	Class 2A	Class 2B	Coarse	4ZE52	Heavy Wall	26.98
D	303-10-PK5	5/8"-11	7/8"-9	13/16"	Class 2A	Class 2B	Coarse Internal/Coarse External	4ZE59	Heavy Wall	65.10
E	303-12-PK5	3/4"-10	1"-8	7/8"	Class 2A	Class 2B	Coarse	4ZE60	Heavy Wall	129.02
F	303-3-PK5	#10-24	3/8"-16	15/32"	Class 2A	Class 2B	Coarse	4ZE53	Heavy Wall	31.96
G	303-332-PK5	#10-32	3/8"-16	15/32"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE53	Heavy Wall	32.01
