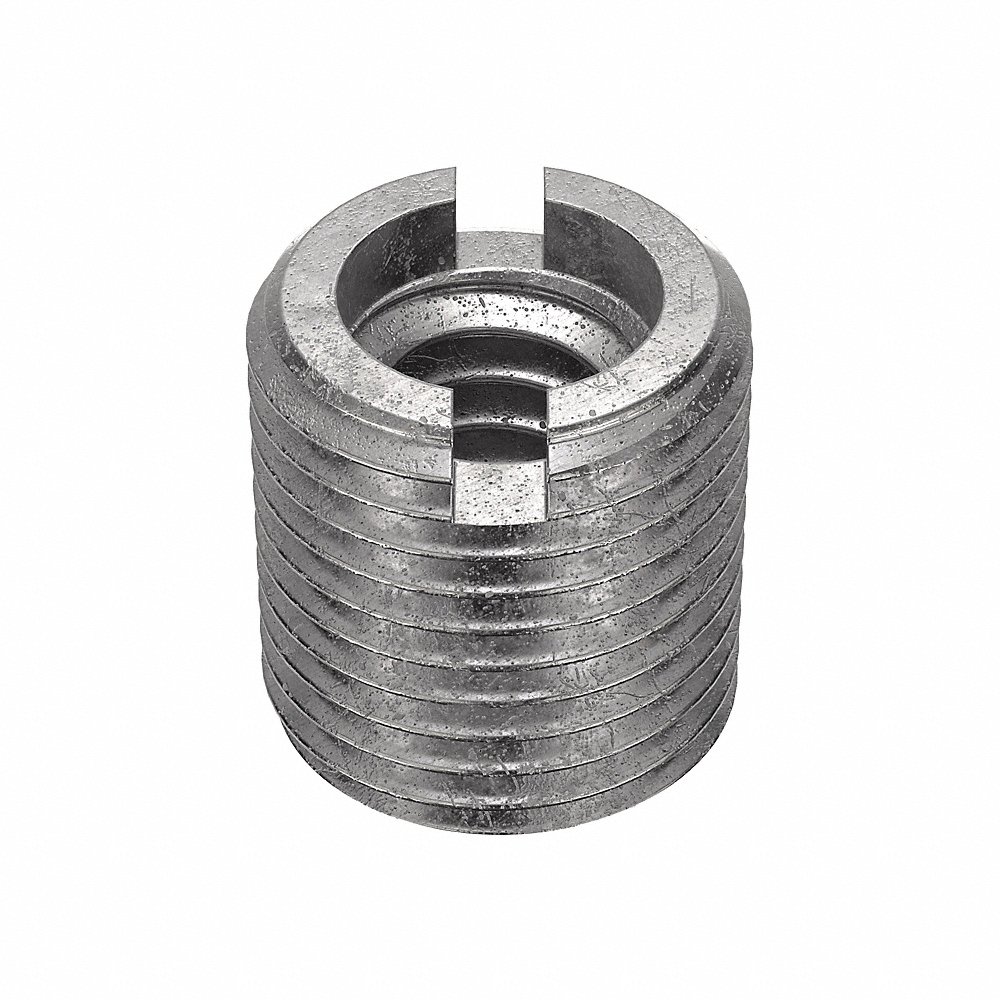

E-Z LOK 453-10-PK5 Thread Insert, M10x1.5 Internal Thread Size, M16x2 External Thread Size, 17 mm Lg., SS, 5PK
Item: CG6NAJ
Model: 453-10-PK5
21 In Stock
Ships within 2 days via
5.00% off
£47/pkg. of 5
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Thread Insert |
|---|---|
| Brinell Hardness | 160 |
| Compatible Material | Metal |
| Compatible Tap Size | M16 x 2 |
| Compatible With Grainger Part Number | 4ZE56 |
| Display Qty | 5 |
| Drill Size | 14 mm |
| External Class | Class 6G |
| External Thread Fit | 6G |
| Features | Pre Applied Adhesive Activates On Installation, Vibration Resistant |
| Finish | Plain |
| Full Cure Time | 72 hrs. |
| Grade | Grade 303 |
| Hardness | Rockwell Brinell 160 |
| Insert Diameter | 16 mm |
| Installation Method | Bolt And Jam Nut, Drive Tool, Screwdriver |
|---|---|
| Internal Class | Class 6H |
| Internal Thread Fit | 6H |
| Length | 17 mm |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Maximum Hole Diameter | 14 mm |
| Min. Full Thread Depth | 3/4" |
| Minimum Installation Depth | 19.05 mm |
| Overall Length | 17 mm |
| Power Driver | 4ZE56 |
| System Of Measurement | Metric |
| Tensile Strength | 89900 psi |
| Thread Type | Metric |
| Wall Type | Heavy Wall |
Product Details
- For Use on Metal
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.067500 |
Related Products
| Style | Model | Internal Thread Size | External Thread Size | Min. Full Thread Depth | External Class | Internal Class | Thread Type | Power Driver | Wall Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 303-004-PK10 | #4-40 | #10-32 | 9/32" | Class 2A | Class 2B | Coarse | - | Heavy Wall | 43.02 | |
| B | 303-006-PK5 | #6-32 | 1/4"-20 | 11/32" | Class 2A | Class 2B | Coarse | 4ZE51 | Heavy Wall | 24.28 | |
| C | 303-008-PK5 | #8-32 | 5/16"-18 | 7/16" | Class 2A | Class 2B | Coarse | 4ZE52 | Heavy Wall | 26.98 | |
| D | 303-10-PK5 | 5/8"-11 | 7/8"-9 | 13/16" | Class 2A | Class 2B | Coarse Internal/Coarse External | 4ZE59 | Heavy Wall | 65.10 | |
| E | 303-12-PK5 | 3/4"-10 | 1"-8 | 7/8" | Class 2A | Class 2B | Coarse | 4ZE60 | Heavy Wall | 129.02 | |
| F | 303-3-PK5 | #10-24 | 3/8"-16 | 15/32" | Class 2A | Class 2B | Coarse | 4ZE53 | Heavy Wall | 31.96 | |
| G | 303-332-PK5 | #10-32 | 3/8"-16 | 15/32" | Class 2A | Class 2B | UNF Internal, UNC External | 4ZE53 | Heavy Wall | 32.01 |
