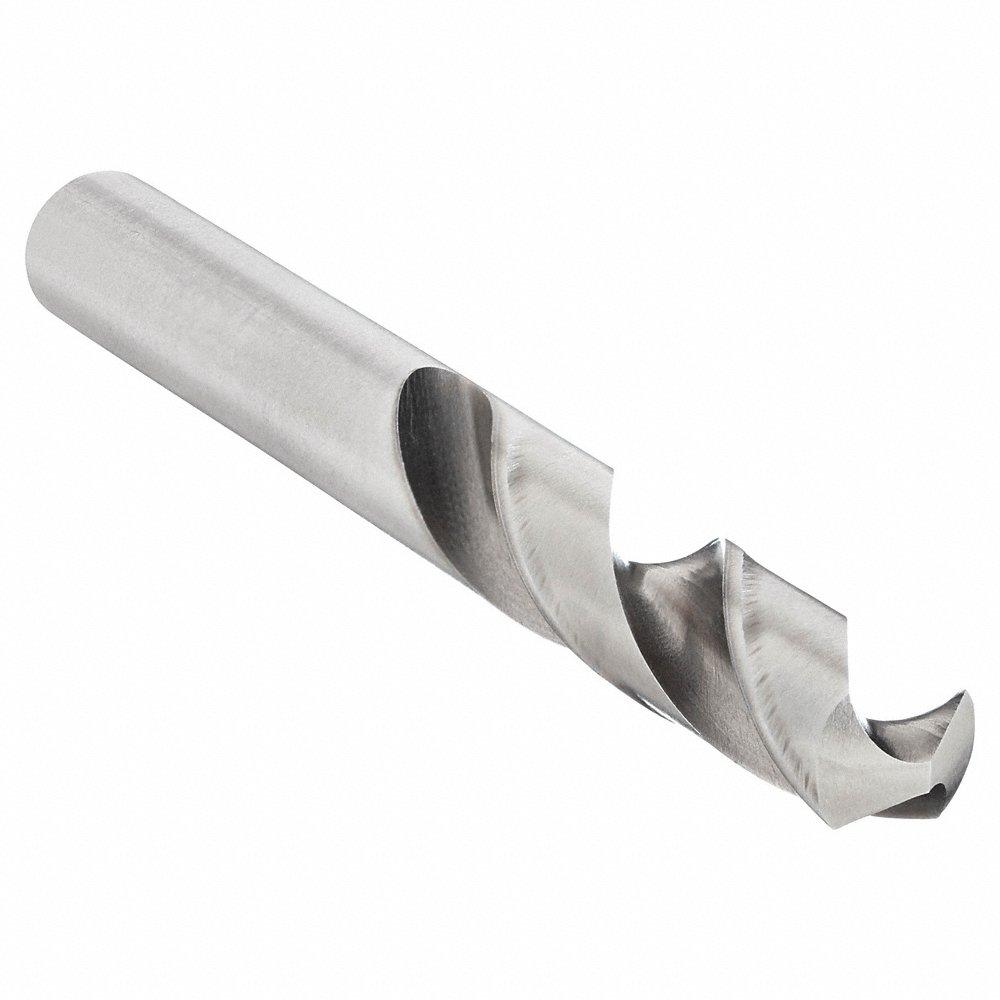

CHICAGO-LATROBE 48826 Screw Machine Drill Bit, Z Drill Bit Size, 2 Inch Flute Length, 3 3/8 Inch Overall Length

Item: CQ8VJC
Model: 48826
23 In Stock

Ships within 2 days via

£24.72
5.00% off
£23.48/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Application For Alloy And Carbon Steels And Cast Iron
Cutting Direction Right Hand
Decimal Equivalent 0.413
Depth X Dia. Ratio 4xd
Depthdia. Ratio 4Xd
Drill Bit Dimension Type Letter
Drill Bit Finish Bright
Drill Bit Grouping Drill Bit
Drill Bit Point Angle 118°
Drill Bit Point Type Conventional Point
Drill Bit Size Z
Drill Diameter Tolerance -0.001" to 0"
Drill Length Class Screw Machine Length
Drill Point Length 0
Finish Bright, Uncoated
Finish - Machining Bright (Uncoated)
Flute Length 2"
Flute Type Spiral
Grade General Purpose
Helix Angle 28°
Left/right Hand Right
List Number 157
Material High Speed Steel
Material - Machining High Speed Steel
Material Grade - Machining General Purpose
Max. Drilling Depth 2"
Overall Length 3 3/8"
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Primary Material Application Iso Code K, N, P
Shank Dia. 0.406"
Shank Diameter 13/32"
Shank Length 1 3/8"
Shank Type Straight
Shank Type - Machining Straight
Spiral Direction Right Hand
Standards Not Rated
System Of Measurement Letter

Product Details

Screw Machine Drill Bit

Shipping Information

height 3.81
length 9.05
width 2.54
country of origin US
weight 0.045000
